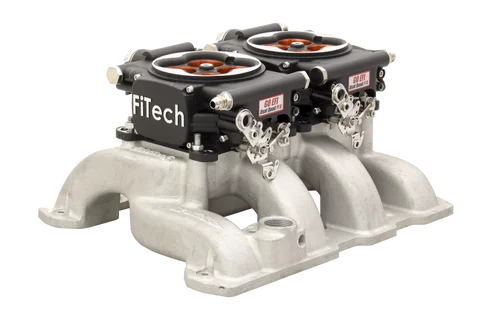

FiTech Go EFI 2×4 1200HP Power Adder Matte Black Finish System (30064)

Description

The FiTech Go EFI 2×4 1200HP Power Adder Matte Black Finish System (30064) is engineered to replace dual 4-barrel carburetors on high-performance engines. This system is designed for both naturally aspirated and boosted applications, supporting engines from 400 HP to 1200 HP. Featuring a dual-quad throttle body design, it directly bolts onto popular dual-quad and tunnel ram manifolds, offering improved fuel efficiency and performance through electronic fuel injection.

KEY FEATURES AND BENEFITS:

• Self-Tuning Capabilities: Simplifies the setup process for enthusiasts.
• Accurate Fuel Delivery: 2.5 BAR internal MAP sensor allows for precision under boost pressures up to 25 psi.
• Versatile Fuel Compatibility: Supports gasoline, alcohol, methanol, and flex fuel.
• Hand-Held Controller: Enables easy monitoring and adjustments.

SPECIFICATIONS:

• Maximum horsepower: 1200 HP
• Injection style: Throttle body
• Timing control: Yes
• Power adder: Yes (Boost/Nitrous oxide)
• ECU included: Yes
• Fuel pump: No
• Metering style: Speed density (MAP-N)
• Throttle body mounting flange: Dual 4-barrel square bore
• Venturi quantity: 8
• Venturi diameter: 43 mm
• Airflow rate: 1700 CFM
• Injector size: 80 lb/hr
• Fuel compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Ensure your engine has a compatible dual-quad intake manifold. Disconnect the existing carburetor and fuel lines.
• Installation: Mount the FiTech throttle bodies onto the intake manifold. Install the oxygen sensor in the exhaust system.
• Wiring: Connect the wiring harness to the engine sensors and power source. Connect the hand-held controller.
• Fuel System: Install a high-pressure fuel pump and regulator. Connect fuel lines to the throttle bodies.
• Initial Setup: Power on the system and use the hand-held controller to input basic engine parameters.
• Self-Tuning: Start the engine and allow the system to self-tune. Monitor the air/fuel ratio and make adjustments as needed.
• Fine-Tuning: For advanced users, utilize the pro-tuning laptop software for detailed adjustments.

BENEFITS OF USING THE FITECH GO EFI 2×4 1200HP POWER ADDER MATTE BLACK FINISH SYSTEM (30064):

• Improved fuel efficiency and performance compared to traditional carburetors.
• Simplified setup with self-tuning capabilities.
• Accurate fuel delivery under boost with the 2.5 BAR MAP sensor.
• Versatile fuel compatibility for various applications.
• Direct bolt-on installation on popular dual-quad manifolds.

FEATURES:

• Dual Die-Cast Throttle Bodies: Enhances airflow for improved performance.
• Flow-Matched Injectors: 8 injectors for precise fuel delivery.
• Integrated Pressure Regulator: Ensures consistent fuel pressure.
• Fan Control Outputs: Two outputs for efficient cooling management.
• Boost and Nitrous Timing Adjustments: Allows for precise tuning under boost conditions.
• Ignition Timing Control: Provides enhanced ignition management.
• Pro-Tuning Laptop Software: Offers advanced tuning capabilities.
• Matte Black Finish: Provides a clean, modern look.
• Flexible Configuration: Can be used in inline, side-mounted, cross ram, and tunnel ram configurations.
