Description

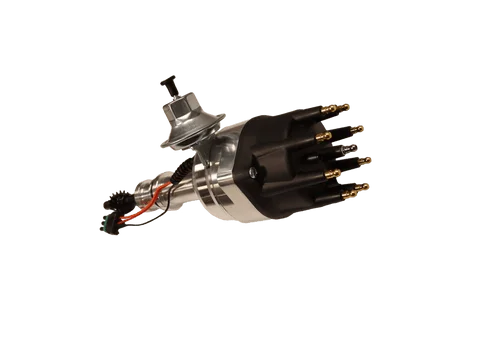

The FiTech Ford 351W Ready-To-Run Distributor (99032) is designed for Ford 351W engines, providing a streamlined ignition solution. This distributor simplifies installation with its built-in module, eliminating the need for external ignition boxes. It offers adjustable mechanical and vacuum advance, ensuring precise timing for various driving conditions.
KEY FEATURES AND BENEFITS:
- Ready-to-run design: For easy installation.
- Built-in ignition module: No external box needed.
- 3-wire hookup: Simplifies wiring.
- CNC-machined aluminum housing: For durability.
- Adjustable mechanical and vacuum advance: For timing control.
- High-output magnetic pickup: Ensures a strong trigger signal.
- Hardened iron drive gear: Steel alloy available separately.
- 3-year limited warranty.
SPECIFICATIONS:
- Engine Compatibility: Ford 351W
- Trigger Style: Magnetic
- Advance Type: Vacuum and Mechanical
- Distributor Cap Style: Male/HEI
- Housing Material: 6061-T6 Aluminum
- Ignition Module: Built-in
- Wiring: 3-wire
- Gear Material: Cast Iron
- Weight: 6.4 lbs
- Dimensions: 6.9 × 18.4 × 7.2 in
HOW TO USE:
- Disconnect the negative terminal of the battery.
- Remove the existing distributor, noting the rotor position.
- Install the FiTech 99032, aligning the rotor with the noted position.
- Connect the 3 wires: power, ground, and tach.
- Adjust the mechanical and vacuum advance as needed.
- Reconnect the battery and test the engine.
BENEFITS OF USING THE FITECH FORD 351W READY-TO-RUN DISTRIBUTOR (99032):
- Simplified installation: Reduces time and effort.
- Improved ignition reliability.
- Precise timing control: Enhances engine performance.
- Eliminates the need for an external ignition box: Cleans up the engine bay.
- Reliable strong spark.
FEATURES:
- Centerless ground shaft with roller bearing and bronze bushing.
- Large paddle wheel reluctor.
- High-performance inductive storage module.
- Screw-down cap and rotor made of glass-fiber reinforced polyester (PBT).
- Brass cap contacts and stainless steel rotor spring.
- Black distributor cap.
