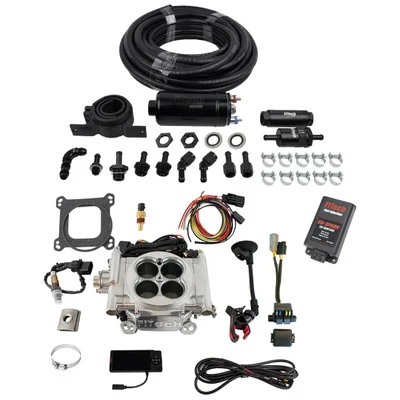

FiTech EFI 4 Aluminum Kit w/Inline Fuel Pump & CDI Box (93101)

Description

The FiTech EFI 4 Aluminum Kit w/ Inline Fuel Pump & CDI Box (93101) offers a straightforward solution for transitioning from carbureted to fuel-injected engines. Designed for 250-600 HP engines with 4-barrel intake manifolds, this system provides improved performance and fuel efficiency through its self-tuning capabilities. The integrated ECU and comprehensive kit simplify installation, making it a practical upgrade for various applications.

KEY FEATURES AND BENEFITS:

• Integrated ECU: Mounted directly on the throttle body for convenient self-tuning adjustments.
• Complete Kit: Includes fuel pump, pressure regulator, and all necessary sensors (MAP, IAT, TPS, oxygen) for a complete installation.
• High Performance: 850 CFM throttle body and 80 lbs./hr. injectors support engines up to 600 HP.
• User-Friendly Controller: Handheld touchscreen enables easy adjustments.
• Versatile Fuel Compatibility: Works with gasoline, methanol, and E85.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control: Compatible
• ECU: Integrated
• Fuel Pump: Included (external)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore (4150)
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs./hr.
• Fuel Type: Gasoline, Methanol, E85

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold (if necessary).
• Installation: Mount the FiTech throttle body onto the 4-barrel intake manifold.
• Fuel System: Install the included fuel pump and pressure regulator, ensuring proper fuel line connections.
• Wiring: Connect the wiring harness to the appropriate sensors and power sources, following the provided instructions.
• Sensor Installation: Mount the oxygen, MAP, IAT, and TPS sensors in their designated locations.
• ECU Setup: Connect the handheld controller to the ECU and follow the on-screen prompts for initial setup.
• Initial Start: Start the engine and allow the system to self-tune. Monitor the engine parameters on the handheld controller.
• Fine-Tuning: Make necessary adjustments using the handheld controller to optimize performance.

BENEFITS OF USING THE FITECH EFI 4 ALUMINUM KIT W/ INLINE FUEL PUMP & CDI BOX (93101):

• Simplified Conversion: Easy transition from carburetor to fuel injection.
• Improved Fuel Efficiency: Enhanced engine performance.
• Self-Tuning Capabilities: For optimized fuel delivery.
• Comprehensive Kit: Comes with all necessary components for installation.
• Fuel Type Compatibility: Versatile for various fuel types.

FEATURES:

• Handheld Touchscreen Controller: For setup and adjustments.
• External Fuel Pump and Pressure Regulator: Included in the kit.
• 850 CFM Airflow Rate: For optimal performance.
• 80 lbs./hr. Fuel Injectors: For adequate fuel delivery.
• Included Sensors: Oxygen, MAP, IAT, and TPS sensors.
• Wiring Harness: For simplified installation.
• CDI Box Compatibility: Ensures performance.
• Adjustable Fan Control Switch: For enhanced cooling.
• Voltage Controlling Fuel Pump Control: For efficiency.
