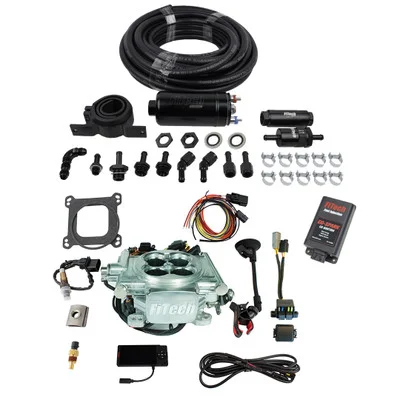

FiTech EFI 4 600HP Power Adder Bright Alum w/Inline Fuel & CDI (93106)

Description

The FiTech EFI 4 600HP Power Adder Bright Alum w/ Inline Fuel & CDI (93106) is engineered for performance enthusiasts seeking precise fuel and ignition control. This kit transforms your 4-barrel carburetor setup into a modern electronic fuel injection system, supporting engines producing 200 to 600 horsepower. Designed for use with boosted or nitrous-assisted applications, this system provides self-tuning capabilities and advanced control features.

KEY FEATURES AND BENEFITS:

• 2.5 BAR Internal MAP Sensor: Suitable for boosted applications up to 25 lbs of boost.
• Consistent Fuel Delivery: Includes 80 lbs/hr injectors and a built-in fuel pressure regulator.
• Precise Timing Control: Compatible with boost and nitrous for optimized performance.
• Self-Tuning Functionality: Simplifies setup and adjusts fuel delivery automatically.
• Enhanced Ignition Performance: Go Spark CDI box included for improved ignition.
• Complete Fuel System Solution: In-line frame mount fuel delivery kit included.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes (Integrated)
• Fuel Pump Included: Yes (In-line frame mount fuel delivery kit)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore (4150 Flange)
• Venturi Quantity: 4
• Venturi Diameter: 43.00 mm
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• MAP Sensor: Included
• IAT Sensor: Included
• TPS Sensor: Included
• Oxygen Sensor: Included
• CDI Box: Included (Go Spark)
• Compatibility: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, etc. engines making 200 HP up to 600 HP with a 4-barrel intake manifold

HOW TO USE:

• Preparation: Remove your existing 4-barrel carburetor and associated components.
• Installation: Mount the FiTech throttle body onto your 4-barrel intake manifold.
• Wiring: Connect the wiring harness to the engine sensors, ignition system (CDI box), and power supply.
• Fuel System: Install the in-line fuel pump and plumb the fuel lines to the throttle body.
• Sensor Connections: Attach the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor to their respective locations.
• CDI Installation: Mount and wire the Go Spark CDI box according to the instructions.
• Initial Setup: Use the handheld controller to enter basic engine parameters.
• Self-Tuning: Start the engine and allow the system to self-learn and adjust fuel and timing.
• Fine Tuning (Optional): Use the pro-tuning laptop software for advanced adjustments.

BENEFITS OF USING THE FITECH EFI 4 600HP POWER ADDER BRIGHT ALUM W/INLINE FUEL & CDI (93106):

• Improved Fuel Efficiency: Enhances overall performance and economy.
• Precise Control: Over fuel and ignition timing for optimal performance.
• Simplified Installation: Self-tuning capabilities streamline setup.
• Enhanced Engine Responsiveness: Provides improved throttle response and power delivery.
• Reliable Operation: Functions effectively in boosted and nitrous-assisted applications.

FEATURES:

• Annular Swirl Discharge Fuel Distribution: For improved fuel atomization.
• Integrated ECU: Within the throttle body for compact design.
• Hand-Held Controller: Features a touchscreen interface for easy operation.
• Dual Fan Control Outputs: For enhanced cooling management.
• Support for Wet Nitrous Applications: Allows control over A/F and ignition timing.
• User-Adjustable Rev Limiter: For customizable performance limits.
• Real-Time Data Monitoring: Via the hand-held controller for immediate feedback.
