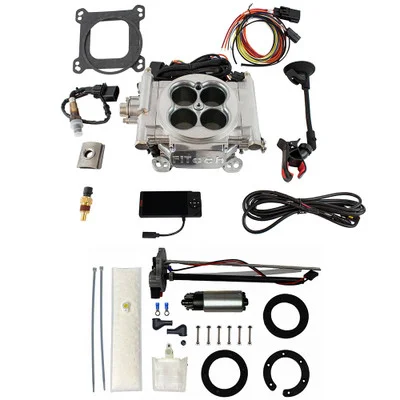

FiTech EFI 4 600 HP Bright Aluminum w/255 LPH In-Tank Kit (36101)

Description

The FiTech EFI 4 600 HP Bright Aluminum w/ 255 LPH In-Tank Kit (36101) offers a comprehensive solution for converting carbureted engines to electronic fuel injection (EFI). This kit is designed for engines producing up to 600 horsepower and fits 4-barrel square bore intake manifolds. It includes an in-tank fuel pump module, ECU, and all necessary sensors for a complete EFI conversion. The system is self-learning, simplifying setup and ensuring optimal performance.

KEY FEATURES AND BENEFITS:

• Converts carbureted engines to EFI for improved performance and efficiency.
• Supports engines up to 600 horsepower.
• Includes an in-tank fuel pump module for complete fuel delivery.
• Self-learning ECU adapts to engine conditions for optimal tuning.
• Wide-band oxygen sensor provides accurate fuel mixture monitoring.
• Handheld controller allows for easy system adjustments and monitoring.
• Compatible with gasoline, alcohol, methanol, and flex fuels.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP
• Injection Style: Throttle body
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 4
• Venturi Diameter: 44 mm
• Airflow Rate: 850 CFM
• Injector Size: 80 lbs/hr
• Fuel Pump Style: In-tank fuel pump
• Metering Style: Speed density (Map-N)
• Timing Control Compatible: Yes
• ECU Included: Yes

HOW TO USE:

• Preparation: Remove the existing carburetor and ensure the intake manifold surface is clean.
• Installation: Mount the FiTech throttle body onto the 4-barrel intake manifold.
• Fuel System: Install the in-tank fuel pump module and connect fuel lines.
• Wiring: Connect the wiring harness to the ECU and engine sensors (MAP, IAT, TPS, oxygen sensor).
• Sensor Installation: Install the wide-band oxygen sensor into the exhaust system.
• Controller Connection: Connect the handheld controller to the ECU.
• Initial Setup: Follow the handheld controller’s instructions to input basic engine parameters.
• Start-up: Start the engine and allow the self-learning system to adjust fuel delivery.
• Fine-Tuning: Use the handheld controller to monitor and fine-tune the system as needed.

BENEFITS OF USING THE FITECH EFI 4 600 HP BRIGHT ALUMINUM W/ 255 LPH IN-TANK KIT (36101):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency.
• Simplified engine starting and smoother idle.
• Reduced emissions.
• Elimination of carburetor-related issues.
• More consistent performance in varying environmental conditions.

FEATURES:

• Built-in ECU, MAP sensor, and fuel pressure regulator.
• 850 CFM polished cast aluminum throttle body.
• 80 lbs/hr fuel injectors.
• Wide-band oxygen sensor included.
• 4.5-inch handheld controller for system monitoring.
• In-tank fuel pump module.
• Compatibility with various fuel types.
• Sensor connections for IAT, TPS, and coolant temperature.
• Wiring harness included.
• Ability to self-learn fuel parameters.
