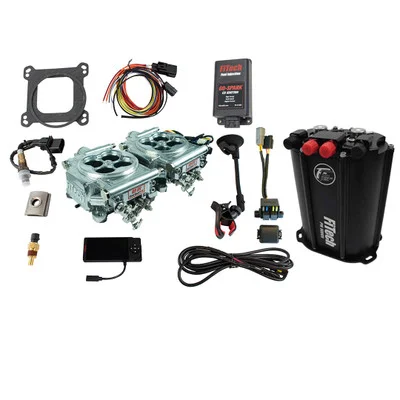

FiTech EFI 2×4 1200 HP Bright Aluminum w/Force Fuel & CDI Box (93545)

Description

The FiTech EFI 2×4 1200 HP Bright Aluminum w/ Force Fuel & CDI Box (93545) is a comprehensive electronic fuel injection (EFI) solution designed for high-performance engines with dual quad intake manifolds. This master kit provides all the necessary components to convert your carbureted setup to EFI, delivering improved power, efficiency, and control. Ideal for both naturally aspirated engines up to 1200HP and those with 671 or 871 roots superchargers, this system simplifies the upgrade process with self-tuning capabilities and a complete fuel and ignition management package.

KEY FEATURES AND BENEFITS:

• High Power Support: Supports up to 1200HP, suitable for a wide range of applications.
• Dual Throttle Body Design: Optimizes airflow and fuel delivery.
• Consistent Fuel Supply: The Dual Pump Force Fuel Delivery Surge Tank ensures reliable fuel delivery even under demanding conditions.
• Self-Tuning Feature: Automatically adjusts fuel settings for optimal performance without extensive manual tuning.
• Enhanced Ignition Control: The included Go Spark CDI Box improves combustion and power output.
• Versatile Compatibility: Compatible with boost and nitrous applications, providing flexibility for various setups.
• Complete Installation Kit: Contains all necessary components for a straightforward upgrade.

SPECIFICATIONS:

• Maximum Horsepower: 1200 HP
• Injection Style: Throttle body
• Timing Control: Yes
• Power Adder Compatibility: Boost/Nitrous oxide
• ECU Included: Yes
• Fuel Pump: External, integrated into surge tank (680 LPH)
• Injector Size: 80 lbs./hr.
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 8
• Venturi Diameter: 43.00mm
• Airflow Rate: 1700 cfm
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• Compatibility: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, Engines with 671 and 871 roots superchargers.

HOW TO USE:

• Preparation: Remove existing dual quad carburetors and ensure the intake manifold is clean and ready for installation.
• Throttle Body Installation: Mount the FiTech dual throttle bodies onto the intake manifold using the provided gaskets.
• Sensor Installation: Install the O2 sensor, coolant temperature sensor (CTS), MAP sensor, and other provided sensors according to the instructions.
• Wiring Harness Connection: Connect the wiring harness to the throttle bodies, sensors, and Go Spark CDI Box, following the wiring diagram.
• Fuel System Installation: Mount the Dual Pump Force Fuel Delivery Surge Tank and connect the fuel lines, ensuring proper fuel pressure.
• CDI Box Installation: Mount the Go Spark CDI Box and connect the ignition wiring.
• Controller Setup: Connect the handheld controller and follow the on-screen prompts to set up the system parameters.
• Initial Startup: Start the engine and allow the system to self-tune. Monitor the engine parameters and make any necessary adjustments.
• Fine Tuning: Use the Pro-tuning laptop software for advanced tuning if needed.

BENEFITS OF USING THE FITECH EFI 2X4 1200 HP BRIGHT ALUMINUM W/ FORCE FUEL & CDI BOX (93545):

• Improved Performance: Enhances engine horsepower and overall performance.
• Enhanced Fuel Efficiency: Optimizes fuel usage for better efficiency.
• Simplified Tuning: Self-tuning capabilities make adjustments easy.
• Consistent Fuel Delivery: Provides reliable fuel supply under high-demand conditions.
• Enhanced Ignition Control: Improves combustion and power output for better performance.
• Versatile Applications: Suitable for boosted and nitrous applications.
• Reliable Operation: Ensures dependable performance in high-pressure scenarios.

FEATURES:

• Optimal Airflow: Dual throttle body design for enhanced airflow.
• Integrated ECU: ECU housed within one throttle body for compact installation.
• Idle Stability: Dedicated IAC motor for improved idle stability.
• Flow-Matched Injectors: 80 lbs./hr flow-matched injectors for precise fuel delivery.
• Accurate Boost Monitoring: 2.5 BAR internal MAP sensor for reliable boost readings.
• High Capacity Pumps: Dual internal 340 LPH fuel pumps within the surge tank for consistent fuel flow.
• User-Friendly Setup: Handheld touchscreen controller for easy system adjustments.
• Advanced Tuning: Pro-tuning software available for more detailed adjustments.
• Enhanced Spark Control: Go Spark CDI box for superior spark management.
• Fuel Pressure Regulation: Dual internal fuel pressure regulators for stable operation.
