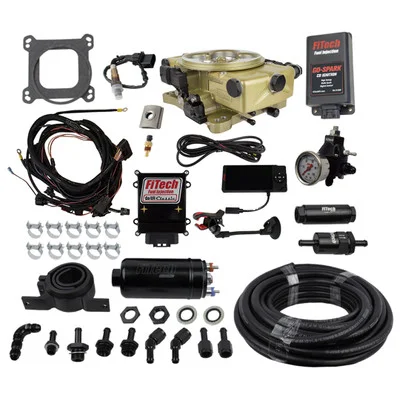

FiTech Classic Gold 650 HP EFI w/ Inline Pump, CDI & Regulator (93120)

Description

The FiTech Classic Gold 650 HP EFI w/ Inline Pump, CDI & Regulator (93120) is a comprehensive electronic fuel injection (EFI) solution designed to replace traditional carburetors. It offers modern fuel delivery and ignition enhancements while maintaining a classic aesthetic. This master kit includes everything needed for a complete EFI conversion, from fuel delivery components to a CDI ignition system, ideal for classic car enthusiasts seeking improved performance and reliability.

KEY FEATURES AND BENEFITS:

• The FiTech 93120 supports engines up to 650 horsepower, providing a significant upgrade in fuel efficiency and performance.
• The self-tuning ECU automatically adjusts fuel delivery for optimal performance, simplifying installation and setup.
• The included inline fuel pump kit ensures consistent fuel pressure.
• The Go-Spark CDI ignition system enhances combustion and power output.
• The classic gold finish of the throttle body adds a vintage touch to your engine bay.
• This complete kit removes the need to buy multiple parts, providing a full system.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Fuel Injection Style: Throttle body
• Throttle Body Flange: 4-barrel square bore (4150)
• Airflow Rate: 950 CFM
• Injector Size: 80 lbs./hr
• Fuel Pump: 255 lph inline pump
• Fuel Pressure Regulator: Adjustable 30-70 psi
• ECU: Self-tuning, user-tunable
• Ignition: Go-Spark CDI
• Display Size: 4.5 inches

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
• Installation: Mount the FiTech throttle body onto the intake manifold using the provided gaskets and hardware.
• Fuel System Setup: Install the inline fuel pump, filters, and regulator, connecting the fuel lines as per the instructions.
• Wiring: Connect the wiring harness to the necessary sensors (oxygen, MAP, IAT, TPS, IAC) and the vehicle’s electrical system.
• Ignition Setup: Install the Go-Spark CDI ignition system, connecting it to the distributor and coil.
• Sensor Connections: Connect all sensors to the wiring harness.
• ECU Mounting: Mount the ECU in a suitable location, ensuring it is protected from heat and moisture.
• Display Connection: Connect the 4.5-inch display to the ECU.
• Initial Setup: Follow the on-screen prompts on the display to input engine parameters and start the self-tuning process.
• Testing and Adjustment: Start the engine and allow the system to self-learn. Fine-tune as needed using the display interface.

BENEFITS OF USING THE FITECH CLASSIC GOLD 650 HP EFI W/ INLINE PUMP, CDI & REGULATOR (93120):

• Improved fuel efficiency and performance.
• Elimination of carburetor-related issues like flooding and vapor lock.
• Enhanced cold start performance.
• Simplified installation with self-tuning capabilities.
• Complete kit including fuel delivery and ignition components.
• Classic look with modern performance.

FEATURES:

• Integrated ECU for a clean engine bay appearance.
• Wideband oxygen sensor for precise air-fuel ratio monitoring.
• Adjustable fuel pressure regulator with gauge for accurate settings.
• Dual bolt pattern throttle body for compatibility with various intake manifolds.
• Included inline fuel pump system.
• 4.5-inch user interface display.
• 80 pound per hour fuel injectors.
