Description

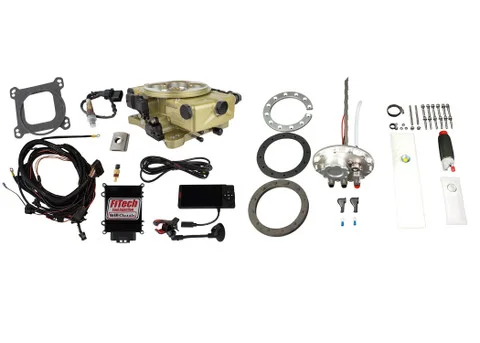

The FiTech Classic Gold 650 HP EFI w/ In-Tank Module (36320) offers a comprehensive solution for upgrading your engine’s fuel system. This kit combines a self-tuning electronic fuel injection (EFI) system with a matching fuel delivery setup, providing improved performance and reliability. Designed for engines up to 650 horsepower, this kit is compatible with 4, 6, and 8-cylinder engines.
KEY FEATURES AND BENEFITS:
- Self-Tuning ECU: Automatically adjusts fuel delivery for optimal performance.
- Complete Master Kit: Includes EFI system and fuel pump module for a streamlined installation.
- Handheld Controller: Touchscreen interface for setup, monitoring, and on-the-fly adjustments.
- High Horsepower Support: Designed for engines up to 650 HP.
- Versatile Compatibility: Works with a wide range of engine configurations.
- Improved Fuel Efficiency: Provides precise fuel delivery for better economy.
- Enhanced Performance: Delivers consistent power and throttle response.
- Fuel Cell Pump Module: In-tank pump with internal regulator and 2-inch fuel fill.
- OBD II Diagnostics: Read fault codes for easy troubleshooting.
- E85 Compatible: Designed to work with E85 fuel.
SPECIFICATIONS:
- Engine Compatibility: 4, 6, and 8-cylinder engines
- Horsepower Support: Up to 650 HP
- ECU Type: Self-tuning
- Fuel Delivery: Fuel cell pump module with 340 LPH pump
- Controller: Handheld touchscreen
- Fuel Pressure: 58 PSI
- Fuel Fill: 2 inch
- Fuel Type: E85 compatible
- Oxygen Sensor: Bosch 4.2 wideband
- Data Logging: 8GB
HOW TO USE:
- Installation: Install the throttle body onto your 4-barrel intake manifold.
- Fuel System Setup: Install the fuel pump module into your fuel cell or custom tank, and connect fuel lines to the throttle body.
- Sensor Connections: Connect the provided sensors (oxygen, temperature, etc.) to the ECU.
- ECU Wiring: Connect the ECU to your 12-volt ignition system.
- Handheld Controller Setup: Use the touchscreen controller to input your engine’s specifications.
- Initial Tuning: Start the engine and allow the self-tuning ECU to adjust the fuel delivery.
- Fine-Tuning: Use the handheld controller to make on-the-fly adjustments as needed.
- Monitoring: Monitor engine parameters and diagnostics using the controller.
BENEFITS OF USING THE FITECH CLASSIC GOLD 650 HP EFI W/ IN-TANK MODULE (36320):
- Simplified Upgrade: Transition to electronic fuel injection with ease.
- Reliable Performance: Consistent and reliable engine performance.
- Fuel Efficiency: Improved fuel efficiency and reduced emissions.
- Easy Setup: Simplified setup and tuning with the handheld controller.
- Comprehensive Kit: Eliminates guesswork and compatibility issues.
FEATURES:
- Remote ECU Design: Maintains a classic carburetor look.
- Fan Control: Adjustable fan control switches for optimal cooling.
- Secure Connections: -06 AN fuel inlet fitting for reliable connections.
- Fuel Atomization: Wet flow swirl spray annular discharge for complete atomization.
- 12 Volt Compatibility: Works with 12-volt ignition systems.
- Vacuum Requirement: Designed for engines producing at least 6 inches of vacuum at idle.
- CNC-Machined Top: Billet module top for durability.
- Secure Terminals: Provides secure terminals for fuel pump connection.
- High-Quality Materials: Features nylon hose and Viton seals for reliability.
