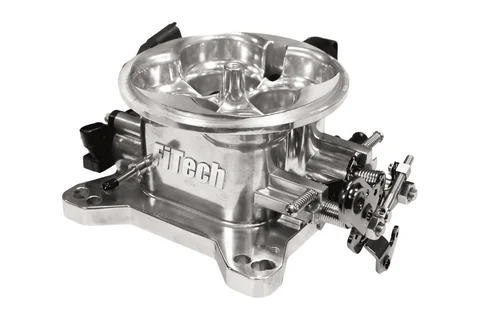

FiTech Brilliant TMAP Universal 4150 4BBL Throttle Body (30035)

Description

The FiTech Brilliant TMAP Universal 4150 4BBL Throttle Body (30035) is a high-flow, 4-barrel throttle body designed to enhance engine performance through improved airflow. Featuring a 4150 flange, it offers broad compatibility with various intake manifolds. This throttle body is engineered for electronic fuel injection (EFI) systems, providing 1000 CFM of airflow. It includes essential components like an Idle Air Control (IAC) motor and a Throttle Position Sensor (TPS). The design also incorporates a threaded Intake Air Temperature (IAT) port, making it suitable for boosted engine applications. The non-progressive secondary throttle linkage ensures immediate and precise throttle response. Constructed from cast aluminum with a polished finish, the FiTech 30035 combines functionality with a clean, professional appearance.

KEY FEATURES AND BENEFITS:

• Provides 1000 CFM of airflow: Enhancing engine performance.
• 4150 flange design: Ensures compatibility with a wide range of intake manifolds.
• Includes a built-in IAC motor: For stable idle control.
• Features a TPS sensor: For accurate throttle position readings.
• Threaded IAT port: Allows for precise temperature measurement in boosted applications.
• Non-progressive secondary throttle linkage: For immediate throttle response.
• TMAP/MAP sensor compatibility: For tuning flexibility.
• Boost reference vacuum port: For added performance.
• Gaskets and hardware included: For easy installation.

SPECIFICATIONS:

• Part Number: 30035
• Throttle Body Style: Throttle body injection (TBI)
• Throttle Body Actuation: Cable
• Venturi Quantity: 4
• Airflow Rate: 1,000 CFM
• TPS Sensor: Included
• IAC Motor: Included
• Gaskets: Included
• Hardware: Included
• Injectors: Not Included
• Throttle Body Material: Cast aluminum
• Throttle Body Color: Polished
• Compatibility: Universal 4150 flange.

HOW TO USE:

• Preparation: Ensure the engine is cool and disconnected from the battery.
• Removal: Remove the existing throttle body and associated components, including the air intake and any connected sensors.
• Installation: Position the FiTech 30035 throttle body onto the intake manifold, aligning the 4150 flange.
• Gasket and Hardware: Install the provided gasket and secure the throttle body using the included hardware.
• Sensor Connection: Connect the TPS sensor, IAC motor, and any other required sensors, such as the TMAP or MAP sensor, ensuring proper connections.
• Vacuum Lines: Attach all necessary vacuum lines to the provided ports.
• Cable Linkage: Connect the throttle cable to the throttle linkage, adjusting for proper tension and operation.
• Air Intake: Reinstall the air intake system.
• Testing: Reconnect the battery and start the engine, checking for proper idle and throttle response.

BENEFITS OF USING THE FITECH BRILLIANT TMAP UNIVERSAL 4150 4BBL THROTTLE BODY (30035):

• Improved engine airflow for enhanced performance.
• Stable idle control provided by the built-in IAC motor.
• Accurate throttle position readings from the included TPS sensor.
• Suitability for boosted applications with the threaded IAT port.
• Flexible tuning with TMAP/MAP sensor compatibility.
• Direct throttle response.
• Easy installation.
• Reliable design.

FEATURES:

• Cast aluminum construction.
• Polished finish.
• Non-progressive 1:1 secondary throttle linkage.
• Threaded IAT port for boosted applications.
• Multiple vacuum ports for accessory connections.
• TMAP/MAP sensor adaptability.
• Cable actuation.
• Boost Reference vacuum port.
