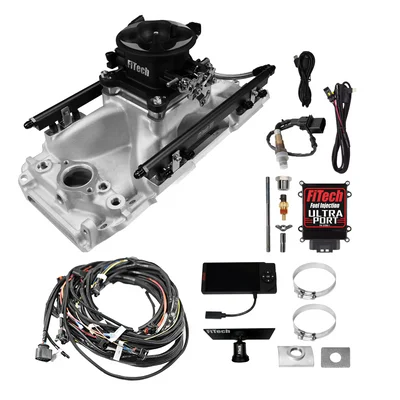

FiTech 750HP Oval Port EFI 4150 Flange Uni Black (30-11-611)

Description

The FiTech 750HP Oval Port EFI 4150 Flange Uni Black (30-11-611) is designed to modernize fuel delivery for Chevy Big Block engines with oval port cylinder heads. This kit offers multi-port fuel injection, supporting up to 750 horsepower with gasoline. It includes a 4150 flange throttle body, a self-tuning ECM, and compatibility with various fuels, providing enhanced engine performance and control.

KEY FEATURES AND BENEFITS:

• Provides multi-port electronic fuel injection: For improved engine performance.
• Supports up to 750 horsepower: With gasoline.
• Self-tuning ECM: For automatic fuel adjustments.
• User-tunable settings: For customized performance.
• Compatible with multiple fuel types: Including gasoline, Flex fuel, alcohol, and methanol.
• Includes a 4150 flange throttle body: With a Uni Black finish.
• Comes with essential sensors: TMAP, MAP, IAT, TPS, and IAC.
• Features a 4.5-inch display: For user interface and monitoring.
• Complete intake section and fuel rails: Are included.
• Timing control compatible.

SPECIFICATIONS:

• Engine Compatibility: Chevy Big Block with oval port cylinder heads (1965 and newer)
• Maximum Horsepower: 750 HP (gasoline)
• Throttle Body Flange: 4150 (4-barrel square bore)
• Airflow: 1000 CFM
• Injector Size: 55 lbs/hr
• Fuel Compatibility: Gasoline, Flex fuel, alcohol, methanol
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
• ECM: Included, self-tuning and user-tunable
• Sensors: TMAP, MAP, IAT, TPS, IAC, Oxygen
• Display: 4.5-inch user interface
• Intake Material: Aluminum
• Venturi Diameter: 44 mm
• Venturi Quantity: 4
• Engine Block Deck Height: Standard Deck

HOW TO USE:

• Preparation: Disconnect the vehicle’s battery. Remove the existing carbureted intake system.
• Installation: Install the FiTech intake manifold and fuel rails onto the engine.
• Throttle Body Mounting: Attach the 4150 flange throttle body to the intake manifold.
• Sensor Installation: Mount the included sensors (TMAP, MAP, IAT, TPS, IAC, and oxygen sensor) in their designated locations.
• Wiring Harness Connection: Connect the wiring harness to the sensors, injectors, and ECM.
• ECM Mounting: Secure the ECM in a suitable location.
• Fuel System Integration: Connect the fuel lines to the fuel rails. (Note: A fuel pump and pressure regulator are required, but not included.)
• Display Setup: Connect the 4.5-inch display to the ECM and mount it in a visible location.
• Initial Setup: Reconnect the battery. Follow the instructions on the display to input basic engine parameters.
• Self-Tuning: Start the engine and allow the ECM to self-tune the fuel delivery. User adjustments can be made as needed.

BENEFITS OF USING THE FITECH 750HP OVAL PORT EFI 4150 FLANGE UNI BLACK (30-11-611):

• Improved Fuel Efficiency: Enhanced engine performance.
• Precise Fuel Control: For optimal power delivery.
• Simplified Tuning Process: With self-tuning capabilities.
• Enhanced Throttle Response: And drivability.
• Compatibility with Multiple Fuel Types.
• Modernized Engine Management: For classic Chevy Big Blocks.

FEATURES:

• Matte black throttle body finish.
• Complete intake section included.
• Multi-port fuel rails provided.
• 1000 CFM airflow rate.
• 55 lbs/hr fuel injectors.
• Speed density or Alpha-N metering.
• Timing control compatibility.
• Forced induction/Nitrous oxide compatible.
