FiTech 750HP Ford 351W Offenhauser VPI EFI Uni Brilliant (30-18-610)

Description

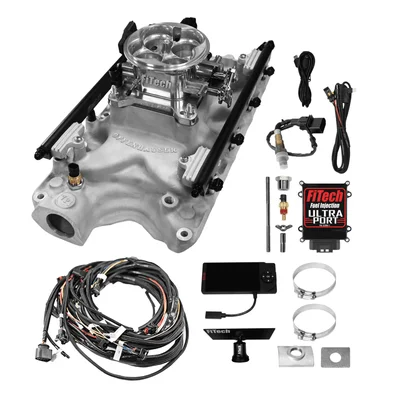

The FiTech 750HP Ford 351W Offenhauser VPI EFI Uni Brilliant (30-18-610) is a comprehensive electronic fuel injection upgrade designed to enhance the performance of Ford 351 Windsor engines. This kit provides a complete solution for converting your engine to port fuel injection, offering improved power, throttle response, and fuel efficiency. It includes all necessary components, such as the Offenhauser VPI intake manifold, a 4150 flange throttle body, ECU, sensors, and wiring harness. Designed for engines producing up to 750 horsepower, this system is ideal for those seeking a high-performance EFI solution.

KEY FEATURES AND BENEFITS:

• Port Fuel Injection: Delivers precise fuel delivery directly into the intake ports, optimizing combustion and improving throttle response.
• High Horsepower Rating: Supports up to 750 horsepower, making it suitable for high-performance engine builds.
• Complete Kit: Includes all essential components for a seamless EFI conversion, including intake manifold, throttle body, ECU, sensors, and wiring harness.
• Self-Tuning ECU: Features a self-learning ECU that simplifies setup and tuning, allowing for optimal performance.
• User Tunable: Allows for fine-tuning adjustments to cater to specific engine configurations and performance requirements.
• 4150 Flange Throttle Body: Provides high airflow with a 1000 CFM rating, enhancing engine performance.
• Offenhauser VPI Intake Manifold: Provides a high-quality intake manifold designed for performance.
• Transmission Control: Unit includes transmission controller capabilities.

SPECIFICATIONS:

• Engine Compatibility: Ford 351W
• Maximum Horsepower: 750 HP (Gasoline)
• Fuel Injection Style: Multi-port
• Throttle Body Flange: 4-Barrel Square Bore (4150)
• Throttle Body Airflow: 1000 CFM
• Injector Size: 55 lbs/hr
• Intake Manifold: Offenhauser VPI (Aluminum, Cast Finish)
• ECU: Included, Self-Tuning, User Tunable
• Sensors: MAP, IAT, TPS, Oxygen, 3-Bar TMAP
• Wiring Harness: Included
• Display: 4.5-Inch Handheld Touchscreen
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
• Transmission Control: Included
• Compatibility: Standard Deck 351W Engines

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing intake manifold and carburetor.
• Install Intake Manifold: Mount the Offenhauser VPI intake manifold onto the engine.
• Install Throttle Body and Fuel Rails: Attach the 4150 throttle body and fuel rails to the intake manifold.
• Install Injectors and Sensors: Insert the injectors into the fuel rails and mount the MAP, IAT, TPS, and oxygen sensors.
• Connect Wiring Harness: Connect the wiring harness to the ECU and all sensors, following the provided instructions.
• Install ECU and Display: Mount the ECU and connect the handheld display.
• Connect Fuel Lines: Connect the fuel lines to the fuel rails (fuel pump and regulator are required, not included).
• Initial Setup: Power on the system and use the handheld display to input basic engine parameters.
• Start Engine and Self-Tuning: Start the engine and allow the ECU to self-tune.
• Fine-Tuning: Use the handheld display to make any necessary fine-tuning adjustments.

BENEFITS OF USING FITECH 750HP FORD 351W OFFENHAUSER VPI EFI UNI BRILLIANT (30-18-610):

• Improved engine performance with optimized fuel delivery.
• Enhanced throttle response and drivability.
• Increased fuel efficiency compared to traditional carburetors.
• Simplified setup and tuning with self-learning ECU.
• Comprehensive kit provides all necessary components for a complete upgrade.
• Ability to fine-tune for optimal performance.
• Transmission control capabilities.

FEATURES:

• Port fuel injection system.
• 55 lbs/hr fuel injectors.
• 3-Bar TMAP sensor.
• Handheld touchscreen display for monitoring and adjustments.
• Compatibility with multiple fuel types.
• Complete wiring harness.
• Offenhauser VPI intake manifold.
• Speed density (Map-N) or speed throttle (Alpha-N) metering.
• Timing control compatible.
