Description

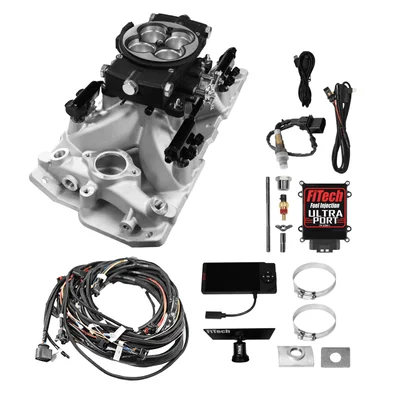

The FiTech 500HP Small Block EFI 4150 Flange Classic Black (30-12-515) is designed to replace traditional carburetors on Small Block Chevy engines, offering improved performance and fuel efficiency. This multi-port fuel injection system delivers precise fuel directly to each cylinder, enhancing overall engine operation. Rated for up to 500 horsepower on gasoline, it features self-tuning capabilities for easy setup and user-adjustable settings for fine-tuning.
KEY FEATURES AND BENEFITS:
- Multi-Port Fuel Injection: Provides precise fuel delivery for enhanced combustion efficiency.
- 500 HP Support: Capable of handling high-performance applications.
- Self-Tuning Functionality: Simplifies the initial setup process.
- User-Tunable Settings: Allows advanced adjustments for optimal performance.
- Complete Kit: Includes ECM, wiring harness, and necessary sensors.
- 4150 Flange Throttle Body: Ensures compatibility with various intake manifolds.
- Engine-Specific Design: Built for standard deck Small Block Chevy engines.
- Fuel Compatibility: Supports Gasoline, Flex Fuel, Alcohol, and Methanol.
SPECIFICATIONS:
- Engine Compatibility: Small Block Chevy (Standard Deck)
- Maximum Horsepower: 500 (Gasoline)
- Injection Style: Multi-port
- Throttle Body Flange: 4150 square bore
- Throttle Body Venturi: 44 mm (verify with vendor)
- Airflow: 1000 CFM
- Injector Size: 36 lbs/hr
- Metering Style: Speed density (MAP-N)
- Fuel Compatibility: Gasoline, Flex Fuel, Alcohol, Methanol
- Sensors Included: MAP, IAT, TPS, Oxygen
- ECM Included: Yes
- Wiring Harness Included: Yes
- Calibration Module Included: Yes
- Transmission Controller: Verify with vendor
- Fuel Pump and Regulator: Not included
- Intake Manifold: Included (verify with vendor)
HOW TO USE:
- Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
- Installation: Install the FiTech intake manifold (if included) and the 4150 throttle body.
- Sensor Mounting: Mount the MAP, IAT, TPS, and oxygen sensors as per the instructions.
- Injector Installation: Install the provided fuel injectors into the intake manifold.
- Wiring Harness Connection: Connect the wiring harness to the ECM and all sensors, ensuring proper connections.
- Fuel System Setup: Install a high-pressure fuel pump and regulator (not included), and connect the fuel lines.
- ECM Setup: Connect the 4.5-inch display and follow the on-screen instructions for initial setup.
- Initial Startup: Start the engine and allow the self-tuning feature to calibrate the system.
- Fine-Tuning: After initial calibration, use the display to make any necessary adjustments.
BENEFITS OF USING THE FITECH 500HP SMALL BLOCK EFI 4150 FLANGE CLASSIC BLACK (30-12-515):
- Improved Fuel Efficiency: More efficient than traditional carburetors.
- Enhanced Engine Performance: Precise fuel delivery improves power and responsiveness.
- Simplified Setup: Self-tuning capabilities reduce installation complexity.
- Advanced Control: User-adjustable settings allow for fine-tuning.
- Modern Fuel Injection: Upgrades classic vehicles with electronic fuel injection.
- Better Cold Starts: Improved startup reliability in various conditions.
- Enhanced Idle Quality: Stable and smooth engine idling.
FEATURES:
- 4-Barrel Square Bore Throttle Body
- Cast Aluminum Throttle Body Construction
- Black Throttle Body Finish
- 36 lbs/hr Fuel Injectors
- 4.5-Inch User Interface Display
- Speed Density (MAP-N) Fuel Metering
- 3-Bar TMAP Sensor
- Compatible with Forced Induction and Nitrous Oxide
- Complete Kit for a Full Install
