FiTech 500HP Rectangle Port EFI 4150 Flange Uni Black (30-10-511)

Description

The FiTech 500HP Rectangle Port EFI 4150 Flange Uni Black (30-10-511) is designed to convert Big Block Chevy engines with rectangle port cylinder heads from a carburetor setup to electronic fuel injection. This kit provides a complete solution for improved fuel delivery, enhanced engine performance, and increased efficiency. It includes all necessary components, minus the fuel and ignition systems, to make the conversion straightforward. The system is rated for up to 500 horsepower when using gasoline and supports various fuel types, including alcohol and methanol.

KEY FEATURES AND BENEFITS:

• Self-Tuning Capabilities: The system automatically adjusts fuel delivery for optimal performance.
• Multi-Port Fuel Injection: Provides precise fuel delivery to each cylinder.
• Electronic Control Module (ECM): Manages fuel and timing for efficient operation.
• Compatibility with Timing Control: Allows for precise ignition timing adjustments.
• Versatile Fuel Compatibility: Supports gasoline, alcohol, and methanol.
• 4.5-inch Display: Provides real-time engine data and tuning options.

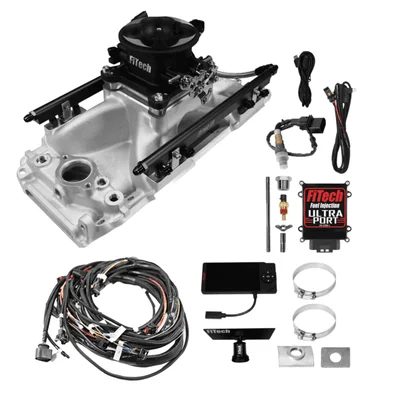

• Complete Kit: Includes throttle body, sensors, and wiring harness.

SPECIFICATIONS:

• Maximum Horsepower (Gas): 500 hp
• Injection Style: Multi-port
• Timing Control: Compatible
• ECM: Included
• Self-Tuning: Yes
• User-Tunable: Yes
• Fuel Type: Gasoline, Alcohol, Methanol, Flex
• Throttle Body: 4-barrel, 1000 CFM
• Injectors: 36 lbs/hr
• Venturi Diameter: 44mm
• Intake Material: Aluminum
• Compatibility: Big Block Chevy with Rectangle port cylinder heads.

HOW TO USE:

• Remove the existing carburetor and intake manifold.
• Install the included FiTech intake manifold.
• Mount the FiTech throttle body onto the intake manifold.
• Install the fuel rails and injectors.
• Connect the included wiring harness to the engine sensors and ECM.
• Mount the ECM in a suitable location.
• Install the oxygen sensor in the exhaust system.
• Connect the 4.5-inch display for monitoring and tuning.
• Connect a compatible fuel system and ignition system (not included).
• Start the engine and allow the self-tuning feature to calibrate the system.
• Fine-tune the system as needed using the display.

BENEFITS OF USING THE FITECH 500HP RECTANGLE PORT EFI 4150 FLANGE UNI BLACK (30-10-511):

• Improved Fuel Efficiency: Electronic fuel injection provides precise fuel control.
• Enhanced Engine Performance: Optimized fuel delivery and timing.
• Simplified Tuning: Self-tuning capabilities reduce setup time.
• Versatile Fuel Options: Compatibility with various fuel types.
• Reliable Operation: Electronic control eliminates carburetor inconsistencies.

FEATURES:

• Cast aluminum throttle body with a black finish.
• Includes MAP, IAT, TPS, and IAC sensors for accurate engine data.
• Wiring harness designed for a straightforward installation.
• 4-barrel square bore throttle body mounting flange.
• 1,000 CFM airflow rate for high performance applications.
• 36 lbs/hr injectors for sufficient fuel delivery.
• Speed density (Map-N) or speed throttle (Alpha-N) metering.
• Multi-port fuel rails are included.
• 44mm venturi diameter.
