FiTech 500HP Oval Port EFI 4150 Flange Uni Brilliant (30-11-510)

Description

The FiTech 500HP Oval Port EFI 4150 Flange Uni Brilliant (30-11-510) is designed to provide modern fuel injection to Chevy Big Block engines with oval port cylinder heads. This kit offers a comprehensive solution for upgrading your engine’s fuel delivery, improving performance and efficiency. It is rated for up to 500 horsepower and supports a wide range of fuels.

KEY FEATURES AND BENEFITS:

• Multi-port fuel injection: For improved fuel burn and throttle response.
• Self-tuning ECU: Simplifies setup and adjustments.
• Compatibility: Supports gasoline, E85 (Flex), alcohol, and methanol fuels.

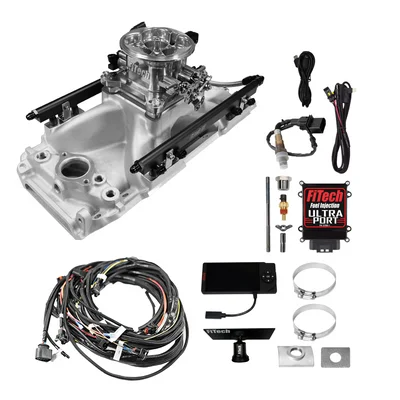

• Complete kit: Includes intake manifold, fuel rails, injectors, sensors, and wiring harness.
• 4150 flange throttle body: Allows for direct carburetor replacement.
• Timing control compatible.
• Includes a 4.5-inch touchscreen display.

SPECIFICATIONS:

• Engine Compatibility: Chevy Big Block, Oval Port
• Maximum Horsepower: 500 HP (gasoline)
• Fuel Injection Style: Multi-port
• Throttle Body Flange: 4150
• Throttle Body CFM: 1000 CFM
• Injector Size: 36 lbs/hr
• Fuel Compatibility: Gasoline, E85, Alcohol, Methanol
• ECU: Included, Self-Tuning
• Sensors: MAP, IAT, TPS, Oxygen
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
• Venturi Diameter: 44 mm
• Compatibility: Chevy Big Block Engines with Oval Port Cylinder Heads, Standard Deck Height.

HOW TO USE:

• Disconnect the battery’s negative terminal.
• Remove the existing carburetor and intake manifold.
• Install the FiTech intake manifold and throttle body, ensuring proper gasket placement.
• Mount the fuel rails and install the injectors.
• Connect the wiring harness to the sensors and ECU.
• Install the oxygen sensor in the exhaust system.
• Connect the ECU to the battery and ignition power.
• Connect the 4.5-inch display screen.
• Install a compatible fuel pump and fuel pressure regulator (not included).
• Follow the on-screen instructions for initial setup and self-tuning.
• Verify fuel pressure and check for leaks.
• Start the engine and allow the system to self-learn.
• Make any necessary adjustments using the touchscreen display.

BENEFITS OF USING THE FITECH 500HP OVAL PORT EFI 4150 FLANGE UNI BRILLIANT (30-11-510):

• Improved Fuel Efficiency: Enhanced performance.
• Enhanced Throttle Response: Better drivability.
• Simplified Tuning: Through the self-learning ECU.
• Versatile Fuel Compatibility: For various engine configurations.
• Modern Fuel Injection Technology: For classic engines.
• Reduced Emissions: Compared to a carburetor.

FEATURES:

• Cast aluminum intake manifold.
• “Uni Brilliant” finish throttle body.
• 3-Bar TMAP sensor.
• Complete wiring harness with labeled connectors.
• 4-barrel square bore throttle body mounting flange.
• Included IAC motor for idle control.
• User tunable through the handheld display.
• Timing control functionality.
