FiTech 3×2 Tri Power 800HP Classic Gold EFI w/Force Fuel & CDI (93550)

Description

The FiTech 3×2 Tri Power 800HP Classic Gold EFI w/ Force Fuel & CDI (93550) provides a modern electronic fuel injection (EFI) upgrade for classic vehicles that utilize a traditional 3×2 carburetor setup. This master kit delivers improved performance, fuel efficiency, and drivability while retaining the classic aesthetic of a triple two-barrel configuration. Featuring self-learning technology, this system simplifies tuning and installation, making it accessible to a wide range of enthusiasts.

KEY FEATURES AND BENEFITS:

• Self-Learning ECU: Automatically adjusts fuel parameters for optimal performance, eliminating the need for complex manual tuning.
• High Power Support: Rated for engines up to 600 horsepower, enhancing performance in classic vehicles.

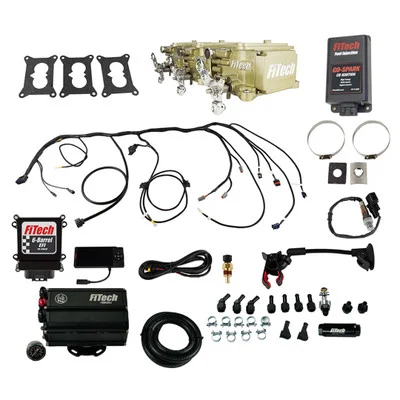

• Complete Master Kit: Includes a Force Fuel Mini Fuel Delivery Surge Tank and Go Spark CDI box for comprehensive upgrades to fuel and ignition systems.
• Classic Aesthetic: The throttle bodies feature a classic gold finish, maintaining the retro look.
• Accurate Fuel Adjustments: Bosch wideband O2 sensor ensures precise fuel tuning and adjustments.

SPECIFICATIONS:

• Maximum Horsepower: 600 HP (naturally aspirated)
• Injection Style: Throttle body
• Throttle Body Mounting Flange: Triple Holley 2-barrel (2300)
• Venturi Quantity: 6
• Venturi Diameter: 44.00mm
• Airflow Rate: 1500 cfm
• Injector Size: 80 lbs./hr.
• Fuel Pump Flow Rating: 680 LPH
• ECU: Included, self-learning
• Timing Control: Yes
• Fuel Type: Gasoline, Alcohol, Methanol, Flex
• Compatibility: Most 3×2 intake manifolds, non-emission controlled vehicles.

HOW TO USE:

• Throttle Body Installation: Begin by installing the 3×2 throttle bodies onto your existing 3×2 intake manifold.
• Fuel Delivery System Installation: Mount the Force Fuel Mini Fuel Delivery Surge Tank and connect the fuel lines as per the instructions.
• Ignition Wiring: Install the Go Spark CDI box and connect the ignition wiring.
• O2 Sensor Installation: Connect the Bosch wideband O2 sensor to the exhaust system.
• Wiring Harness Connection: Plug in the wiring harness and connect the necessary sensors (MAP, IAT, TPS).
• Controller Setup: Connect the handheld controller and follow the on-screen prompts for initial setup.
• Engine Startup: Start the engine and allow the self-learning ECU to adjust fuel parameters over time.

BENEFITS OF USING THE FITECH 3X2 TRI POWER 800HP CLASSIC GOLD EFI W/ FORCE FUEL & CDI (93550):

• Improved Fuel Efficiency: Enhances drivability and fuel economy compared to traditional carburetors.
• Simplified Tuning: Self-learning technology makes it easier to achieve optimal performance.
• Complete Installation Kit: Ensures all necessary components are included for a seamless installation.
• Classic Design: Maintains the vintage look of your vehicle while providing modern performance upgrades.

FEATURES:

• Integrated ECU: Mounted directly on the throttle body for a compact design.
• Improved Fuel Atomization: Features “wet flow annular discharge” technology for better fuel mixing.
• User-Friendly Controller: 4.5-inch handheld touchscreen controller for easy setup and adjustments.
• External Fuel Pump: Includes an integrated fuel pressure regulator for optimal fuel delivery.
• Ignition Compatibility: Works with various ignition systems (COIL, HEI, CDI).
• Durable Construction: Aluminum throttle body with a striking gold finish.
• Pre-Configured: Comes pre-programmed with bolt-n-go technology for easy installation.
• Replaceable Sensors: Utilizes easily replaced GM style sensors for maintenance.
