FiTech 3×2 Tri Power 600 HP Classic Gold EFI w/ 340 LPH & CDI (96733)

Description

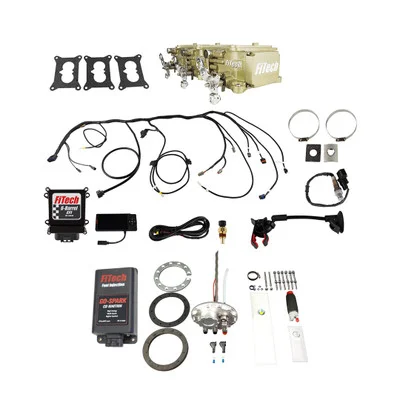

The FiTech 3×2 Tri Power 600 HP Classic Gold EFI w/ 340 LPH & CDI (96733) provides a complete solution for converting carbureted engines to electronic fuel injection. This system combines the classic aesthetic of a triple 2-barrel carburetor setup with the efficiency and performance of modern EFI technology. Designed for engines up to 600 horsepower, this kit includes everything needed for a comprehensive upgrade, including fuel delivery and ignition enhancements.

KEY FEATURES AND BENEFITS:

• Self-Tuning ECU: Adjusts fuel delivery based on real-time engine conditions, ensuring optimal performance.
• Go Spark CDI Ignition System: Improves starting, idle quality, and throttle response with multiple sparks at lower RPMs and high-energy sparks at higher RPMs.
• Triple 500 CFM Throttle Bodies: Supports a wide range of fuel types, including gasoline, alcohol, and methanol.
• In-Tank Fuel Pump Module: Simplifies fuel delivery.

SPECIFICATIONS:

• Fuel Injection Style: Throttle body
• Fuel Injection System Type: Triple 2-Barrel Throttle Bodies (2300 Flange)
• Maximum Horsepower: 600
• Timing Control: Yes
• ECU: Included, self-tuning
• Fuel System: In-tank pump module, returnless
• Ignition System: CDI ignition box
• User Interface: 4.5 in. display
• Throttle Body: Triple Holley 2300, 6 venturis, 44.00mm diameter, 1500 CFM
• Injectors: 80 lbs/hr
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Installation: Install the new intake manifold (if needed) and mount the three throttle bodies.
• Sensor Installation: Install the oxygen sensor, coolant sensor, MAP sensor, IAT sensor, and TPS sensor as per the instructions.
• Fuel System: Install the in-tank fuel pump module and connect the fuel lines.
• Wiring: Connect the wiring harness to the sensors, ECU, and ignition system.
• Ignition: Install the Go Spark CDI ignition box and connect it to the distributor.
• ECU Setup: Mount the ECU and connect the handheld controller.
• Initial Setup: Input basic engine parameters into the handheld controller.
• Testing: Reconnect the battery and start the engine. Allow the self-tuning feature to adjust the fuel delivery.
• Fine-Tuning: Use the handheld controller to fine-tune the system as needed.

BENEFITS OF USING FITEC 3×2 TRI POWER 600 HP CLASSIC GOLD EFI W/ 340 LPH & CDI (96733):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency and reduced emissions.
• Consistent performance in various operating conditions.
• Simplified starting and idle quality.
• Modern EFI technology with a classic Tri-Power appearance.
• Self-tuning capability for easy setup and adjustments.
• Comprehensive kit with all necessary components.

FEATURES:

• Triple Holley 2300 throttle body mounting flange.
• 80 lbs/hr fuel injectors.
• 4.5-inch handheld display for monitoring and adjustments.
• Self-learning ECU for real-time fuel adjustments.
• Compatible with various fuel types.
• Complete wiring harness and sensor kit.
• Speed density (MAP-N) metering style.
• 1500 CFM airflow rate.
