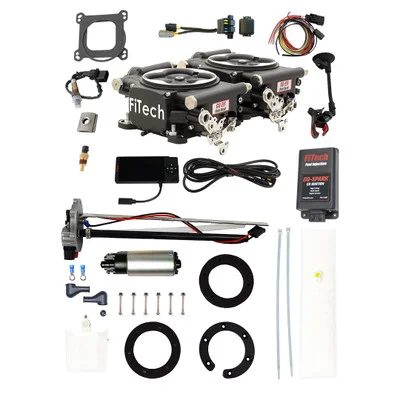

FiTech 2×4 625HP Matte Black EFI w/ In-Tank 600HP Module & CDI (96462)

Description

The FiTech 2×4 625HP Matte Black EFI w/ In-Tank 600HP Module & CDI (96462) provides a comprehensive solution for converting carbureted engines to modern electronic fuel injection. This kit is designed for high-performance applications, offering improved fuel efficiency, drivability, and power output. It includes dual throttle bodies, a fuel delivery system, and an ignition control box, ensuring a complete and efficient upgrade.

KEY FEATURES AND BENEFITS:

• Dual 4-Barrel Throttle Bodies: Mimics the appearance of classic carburetors while delivering the benefits of EFI.
• 625 HP Rating: Supports high-performance engines, providing increased power output.
• Self-Tuning ECU: Simplifies installation and optimizes fuel delivery for various driving conditions.
• Complete Master Kit: Includes fuel pump module and CDI ignition box for a comprehensive upgrade.
• Improved Fuel Efficiency: Provides precise fuel control, resulting in better fuel economy.
• Enhanced Drivability: Offers smoother idle, throttle response, and overall engine performance.

SPECIFICATIONS:

• Fuel Injection Style: Throttle body
• Fuel Injection System Type: Dual 4-Barrel Throttle Bodies (4150 Flange)
• Maximum Horsepower with Gas: 625
• Timing Control Compatible: Yes
• ECM Included: Yes
• Self Tuning: Yes
• User Tunable: Yes
• Fuel System Included: In-tank fuel pump module, returnless
• Ignition System Included: Ignition box
• User Interface Included: 4.5 in. display
• Metering Style: Speed density
• Throttle Body Mounting Flange: Dual 4-barrel square bore
• Venturi Quantity: 8
• Venturi Diameter (mm): 44.00mm
• Airflow Rate (cfm): 1,700 cfm
• Injector Size (lbs/hr): 62 lbs./hr.

HOW TO USE:

• Remove existing carburetor and related components.
• Install the FiTech dual throttle bodies onto the intake manifold.
• Mount the fuel pump module within the fuel tank or fuel cell.
• Connect the wiring harness to the throttle bodies, sensors, and ignition box.
• Install the oxygen sensor in the exhaust system.
• Connect the handheld display for initial setup and tuning.
• Verify all connections and fuel lines for leaks.
• Start the engine and allow the self-tuning ECU to calibrate the fuel delivery.
• Fine-tune the system using the handheld display as needed.
• Test drive the vehicle and monitor performance.

BENEFITS OF USING FITECH 2×4 625HP MATTE BLACK EFI W/ IN-TANK 600HP MODULE & CDI (96462):

• Modernizes classic engines with advanced EFI technology.
• Provides consistent and reliable engine performance.
• Reduces fuel consumption compared to traditional carburetors.
• Simplifies engine tuning and maintenance.
• Enhances throttle response and overall driving experience.

FEATURES:

• Dual throttle body construction with eight injectors.
• Integrated ECU with self-tuning capability.
• Included Go-Spark CDI ignition box for improved spark.
• Multiple fuel pump options for various fuel tank configurations.
• 4.5-inch handheld display for easy user interface.
• Comprehensive sensor package for accurate engine monitoring.
• Cast aluminum throttle body construction.
• 62 lbs/hr fuel injectors.
• 1700 CFM airflow rate.
• Compatible with various distributor types.
