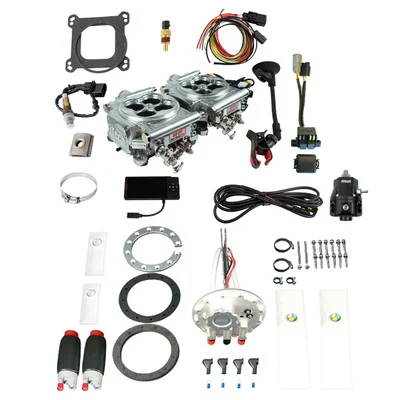

FiTech 2×4 1200 HP Aluminum EFI w/Dual Pump In-tank Module (36465)

Description

The FiTech 2×4 1200 HP Aluminum EFI w/Dual Pump In-tank Module (36465) is a high-performance Electronic Fuel Injection (EFI) throttle body system designed for engines producing up to 1200 horsepower. This system is engineered to accommodate power adders like superchargers, turbochargers, and nitrous oxide, providing precise fuel delivery for optimal performance. The kit includes essential components such as an ECU, sensors, and an in-tank fuel pump, making it a comprehensive solution for high-performance builds.

KEY FEATURES AND BENEFITS:

• High horsepower support: Compatible with engines producing up to 1200 HP.
• Power adder compatibility: Designed for use with boost and nitrous oxide systems.
• Throttle body injection: Utilizes 8 venturi and 36 lbs/hr injectors for ample fuel delivery.
• Speed density (MAP-N) metering: Provides accurate fuel adjustments based on manifold pressure and engine speed.
• Fuel flexibility: Compatible with gasoline, alcohol, methanol, and flex fuel.
• In-tank fuel pump: Ensures reliable fuel delivery and pressure.

SPECIFICATIONS:

• Maximum horsepower: 1200 HP
• Injection style: Throttle body
• Power adder compatibility: Boost/Nitrous Oxide
• ECU included: Yes
• Fuel pump included: Yes
• Metering style: Speed Density (MAP-N)
• Airflow rate: 1700 CFM
• Injector size: 36 lbs/hr
• Venturi: 8 x 43mm
• Fuel compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Installation: Mount the throttle body to the intake manifold using the dual 4-barrel square bore flange. Install the included in-tank fuel pump.
• Sensor connection: Connect the included oxygen sensor, MAP sensor, IAT sensor, and TPS sensor to the ECU using the provided wiring harness.
• ECU setup: Mount the ECU and connect the necessary power and ground wires.
• Fuel system: Connect the fuel lines from the in-tank fuel pump to the throttle body, ensuring proper fuel pressure regulation.
• Initial calibration: Use the provided calibration module to set the initial parameters.
• Self-learning: Start the engine and allow the self-learning feature to adjust fuel delivery for optimal performance.
• Fine-tuning: Make any necessary fine-tuning adjustments using the calibration module or compatible software.

BENEFITS OF USING THE FITECH 2×4 1200 HP ALUMINUM EFI W/DUAL PUMP IN-TANK MODULE (36465):

• Improved engine performance: Enhanced horsepower and torque through precise fuel delivery.
• Flexibility with power adders: Seamless integration with boosted or nitrous setups.
• Simplified tuning: Self-learning feature for easy calibration.
• Diverse fuel compatibility: Versatile for different engine configurations.
• Comprehensive installation package: Includes all necessary sensors and components.

FEATURES:

• High 1700 CFM airflow capacity: Supports high-performance applications.
• Eight 43mm venturis: Optimizes air intake for improved performance.
• 36 lbs/hr fuel injectors: Substantial fuel delivery for demanding engines.
• Fuel compatibility: Works with alcohol, gasoline, methanol, and flex fuels.
• Complete sensor package: Oxygen, MAP, IAT, TPS sensors included for accurate monitoring.
• Dual 4-barrel square bore throttle body mounting: Easy installation.
• Timing control compatible: Allows for precise ignition adjustments.
• Bright polished cast aluminum throttle body: Durable and aesthetically pleasing design.
