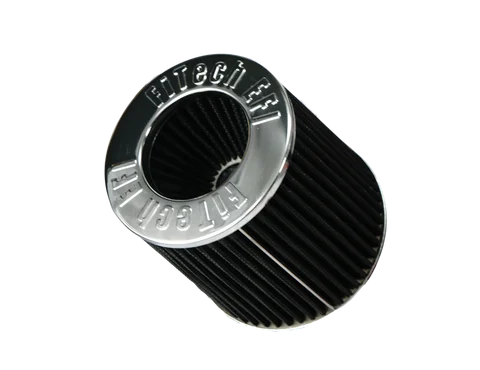

FiTech 102mm LS Throttle Body Cone Style 6 Inch Air Filter (41002)

Description

The FiTech 102mm LS Throttle Body Cone Style 6 Inch Air Filter (41002) is a high-flow conical air filter engineered to improve the performance of LS engines equipped with 102mm throttle bodies. This filter utilizes an open, conical design to maximize airflow and filtration. Its synthetic, oil-free filter media is washable and reusable, offering long-term efficiency. The chrome end caps and included hardware ensure a secure and stylish installation.

KEY FEATURES AND BENEFITS:

• Increased Airflow: The conical design and high-flow filter media allow for greater air intake, enhancing engine performance.
• Enhanced Filtration: The open design allows air to be drawn from both inside and outside the cone, increasing the filter’s surface area and contaminant capture.
• Washable and Reusable: The synthetic Dryflow media can be easily cleaned and reused, providing long-term cost savings.
• Easy Installation: The included rubber coupler and heavy-duty clamp facilitate straightforward installation on 102mm throttle bodies.
• Durable Construction: Chrome end caps and a robust clamp ensure a secure and lasting fit.

SPECIFICATIONS:

• Air Filter Type: Dry
• Air Filter Style: Conical flanged
• Inlet Flange Inside Diameter: 4.38 inches
• Air Filter Length: 6.00 inches
• Air Filter Top Measurement: 4.750 inches diameter
• Air Filter Bottom Measurement: 6.000 inches diameter
• Air Filter End Cap Material: Steel
• Air Filter End Cap Color: Chrome
• Filter Material: Synthetic
• Filter Color: Black
• Designed for: LS 102mm throttle body

HOW TO USE:

• Ensure the engine is cool and turned off.
• Remove the existing air filter assembly from the 102mm throttle body.
• Slide the rubber coupler onto the flange of the throttle body.
• Position the FiTech 41002 air filter onto the coupler.
• Secure the filter with the included heavy-duty clamp.
• Ensure the filter is firmly attached and properly sealed.
• Start the vehicle and verify proper function.

BENEFITS OF USING THE FITECH 102MM LS THROTTLE BODY CONE STYLE 6 INCH AIR FILTER (41002):

• Improved engine performance through increased airflow.
• Efficient filtration to protect the engine from contaminants.
• Cost-effective solution with a washable and reusable filter.
• Simple installation for quick performance upgrades.
• A clean look with the chrome end caps.

FEATURES:

• Conical shape for maximized surface area.
• Dryflow synthetic filter media.
• Chrome plated steel end caps.
• Included rubber coupler.
• Heavy-duty installation clamp.
• Black filter media.
• Designed to fit 102mm LS throttle bodies.
