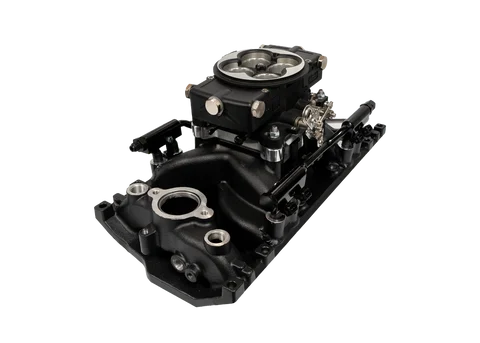

FiTech 1000HP Vortec EFI 4150 Flange Classic Black TMAP (30-21-415)

Description

The FiTech 1000HP Vortec EFI 4150 Flange Classic Black TMAP (30-21-415) offers a significant performance upgrade for a wide range of Chevrolet small block engines produced from the 1950s through the 1980s. This comprehensive multi-port fuel injection kit replaces your existing carburetor setup with a modern, electronically controlled system, providing improved power, fuel efficiency, and engine management. Designed for ease of installation and tuning, the FiTech 30-21-415 is compatible with various fuel types, including gasoline, Flex fuel, alcohol, and methanol, making it a versatile choice for enthusiasts. With a robust design capable of supporting up to 1000 horsepower on gasoline, this system is well-suited for both stock and modified engines.

KEY FEATURES AND BENEFITS:

• High Horsepower Capability: Rated to support up to 1000 horsepower on gasoline, providing ample headroom for performance builds.
• Multi-Fuel Compatibility: Engineered to run on gasoline, Flex fuel, alcohol, and methanol, offering flexibility in fuel choices.
• Self-Tuning Functionality: The included ECM features self-tuning capabilities, simplifying the initial setup and allowing the system to adapt to your engine’s characteristics.
• User Tunable: While self-tuning is a key feature, the system also allows for user adjustments to fine-tune performance for specific applications.
• Comprehensive Kit: Includes essential components such as the throttle body, injectors, fuel rails, wiring harness, and sensors for a complete installation (note: external fuel system required).
• Improved Performance and Efficiency: Expect enhanced throttle response, smoother idle, and potentially better fuel economy compared to traditional carburetor setups.

SPECIFICATIONS:

• Part Number: 30-21-415
• Fuel Injection Style: Multi-port
• Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
• Maximum Horsepower with Gas: 1000
• Timing Control Compatible: Yes
• ECM Included: Yes
• Self Tuning: Yes
• User Tunable: Yes
• Fuel System Included: None (Requires external fuel system with 58 PSI)
• Ignition System Included: None
• Power Distribution Included: None
• User Interface: 4.5 in. display
• EGR: No
• Transmission Controller Included: No
• Metering Style: Speed density
• Intake Material: Aluminum
• Intake Color: Natural
• Engine Block Deck Height: Standard deck
• Multi-Port Fuel Rails Included: Yes
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 4
• Venturi Diameter (mm): 44.00
• Throttle Body Material: Cast aluminum
• Throttle Body Color: Black
• Injectors Included: Yes
• Calibration Module Included: Yes
• Wiring Harness Included: Yes
• Oxygen Sensor Included: Yes
• Fuel Pressure Regulator Included: No
• MAP Sensor Included: Yes
• IAT Sensor Included: Yes
• TPS Sensor Included: Yes
• IAC Motor Included: Yes
• Compatibility: Chevrolet Small Block Engines (1950s-1980s)

HOW TO USE:

• Preparation: Ensure your engine is in good running condition. Gather all necessary tools and components, including the FiTech 30-21-415 kit and a compatible external fuel system.
• Intake Manifold Installation: Remove the existing intake manifold and carburetor. Install the new FiTech intake manifold, ensuring proper gasket sealing and torque specifications.
• Throttle Body and Fuel Rail Installation: Mount the FiTech throttle body onto the intake manifold. Install the fuel rails and connect the included fuel injectors.
• Sensor Installation: Install the provided oxygen sensor in the exhaust system. Mount the MAP and IAT sensors in their designated locations on the intake or throttle body. Connect the TPS and IAC motor, which are typically pre-installed on the throttle body.
• Wiring Harness Connection: Connect the wiring harness to the ECM and the various sensors and components on the engine. Carefully follow the wiring diagram provided in the installation manual. Ensure secure and correct connections.
• Fuel System Setup: Install an external fuel pump capable of delivering 58 PSI. Connect fuel lines from the pump to the fuel filter, then to the fuel rails. Install a fuel pressure regulator and return line as required.
• ECM Mounting and Power: Mount the ECM in a suitable location, away from excessive heat and vibration. Connect the main power and ground wires to the battery.
• Initial Setup via Touchscreen: Connect the handheld touchscreen display to the ECM. Follow the on-screen prompts to input basic engine parameters and fuel type.
• Initial Engine Start and Monitoring: Prime the fuel system and start the engine. Monitor the touchscreen display for initial readings and ensure the engine idles smoothly.
• Self-Tuning and Adjustments: Allow the self-tuning feature to adjust the fuel mixture over time as you drive. You can also use the touchscreen to make manual adjustments if needed for optimal performance.

BENEFITS OF USING FITECH 1000HP VORTEC EFI 4150 FLANGE CLASSIC BLACK TMAP (30-21-415):

• Enhanced Engine Performance: Experience improved horsepower, torque, and throttle response compared to traditional carbureted systems.
• Improved Fuel Efficiency: Modern electronic fuel injection can optimize fuel delivery, potentially leading to better fuel economy.
• Consistent Performance: Eliminates issues associated with carburetor tuning changes due to temperature, altitude, and other factors.
• Versatile Fuel Options: Compatibility with gasoline, Flex fuel, alcohol, and methanol provides flexibility based on availability and preference.
• Modern Technology: Brings the benefits of electronic fuel injection to older vehicles, improving drivability and reliability.
• Ease of Starting: Typically offers quicker and more reliable engine starting, especially in varying weather conditions.

FEATURES:

• 4150 Flange Throttle Body: Direct replacement for many common 4-barrel carburetors, simplifying installation.
• High-Flow Fuel Injectors: Included injectors are designed to support the system’s 1000 HP rating.
• Aluminum Intake Manifold: Provides a lightweight and efficient platform for the fuel injection system.
• 4.5-inch Touchscreen Display: Offers a user-friendly interface for monitoring and adjusting system parameters.
• Speed Density Fuel Metering: Calculates fuel requirements based on manifold air pressure and engine speed.
• Comprehensive Wiring Harness: Includes all necessary wiring for connecting the various components.
• Included Sensors: Comes with essential sensors like oxygen, MAP, IAT, TPS, and IAC for accurate engine management.
