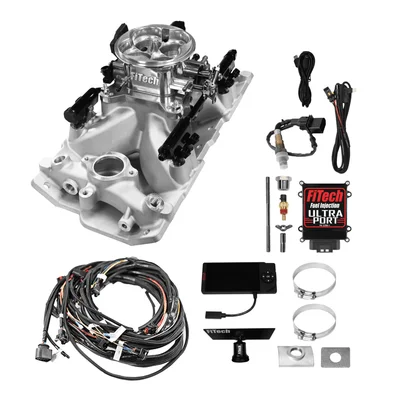

FiTech 1000HP Small Block EFI 4150 Flange Uni Brilliant (30-12-410)

Description

The FiTech 1000HP Small Block EFI 4150 Flange Uni Brilliant (30-12-410) is a comprehensive electronic fuel injection solution designed to enhance the performance of small block Chevrolet engines. This kit provides precise fuel control and delivers up to 1,000 horsepower when using gasoline. It includes an Engine Control Module (ECM) with self-tuning and user-adjustable capabilities, multi-port fuel rails, and a 4-barrel square bore throttle body. This system is suitable for high-performance applications, including those with forced induction and nitrous oxide.

KEY FEATURES AND BENEFITS:

• Provides up to 1,000 horsepower: With gasoline.
• Multi-port fuel injection: For precise fuel delivery.
• Self-tuning ECM: For simplified setup and operation.
• User-tunable capabilities: For advanced adjustments.
• Compatible with various fuel types: Including gasoline, Flex fuel, alcohol, and methanol.
• Includes a 4.5-inch display: For user interface and monitoring.
• Includes multi-port fuel rails: 80 lbs/hr injectors, and a complete aluminum intake manifold.
• Transmission controller included.

SPECIFICATIONS:

• Engine Compatibility: Small Block Chevrolet (SBC), Standard Deck
• Maximum Horsepower: 1,000 HP (gasoline)
• Fuel Injection Style: Multi-port
• Throttle Body: 4-barrel square bore (4150 flange)
• Injector Size: 80 lbs/hr
• Intake Material: Aluminum
• Metering Style: Speed density (MAP-N) or speed throttle (Alpha-N)
• Sensors Included: Oxygen, MAP, IAT, TPS, IAC
• ECU: Included
• Transmission Controller: Included
• Fuel Type: Gasoline, Alcohol, Methanol, Flex
• Compatibility: Non-emissions-controlled vehicles or closed-course racing

HOW TO USE:

• Installation: Install the intake manifold, throttle body, fuel rails, and injectors onto the engine.
• Sensor Connection: Connect the included sensors (oxygen, MAP, IAT, TPS, IAC) to the wiring harness.
• Wiring Harness: Connect the wiring harness to the ECM and power source.
• Fuel System: Install a compatible fuel pump and fuel pressure regulator (not included). Connect the fuel lines to the fuel rails.
• Display Setup: Connect the 4.5-inch display to the ECM and mount it in a convenient location.
• Initial Setup: Follow the on-screen instructions to input engine parameters and perform initial setup.
• Self-Tuning: Start the engine and allow the ECM to self-tune the fuel and ignition settings.
• User Tuning: If desired, use the display to make advanced adjustments to fuel and ignition settings.
• Testing: Test the vehicle under various driving conditions to ensure proper operation.

BENEFITS OF USING THE FITECH 1000HP SMALL BLOCK EFI 4150 FLANGE UNI BRILLIANT (30-12-410):

• Improved Engine Performance: Enhanced horsepower.
• Precise Fuel Control: For optimal efficiency.
• Simplified Setup: With self-tuning capabilities.
• User-Adjustable Settings: For customized performance.
• Compatibility with Various Fuel Types.
• Inclusion of the Transmission Controller: Allows for better control of the vehicle’s transmission.

FEATURES:

• Complete kit includes all necessary sensors and wiring.
• Aluminum intake manifold provides improved airflow.
• 80 lbs/hr injectors support high-horsepower applications.
• 4.5-inch display offers real-time monitoring and adjustments.
• Supports forced induction and nitrous oxide.
• Utilizes a 3-Bar TMAP Sensor.
• Uni Brilliant Finish Throttle Body.
• 4 Venturi, 61 mm diameter.
