FiTech 1000HP Small Block EFI 4150 Flange Classic Black (30-12-415)

Description

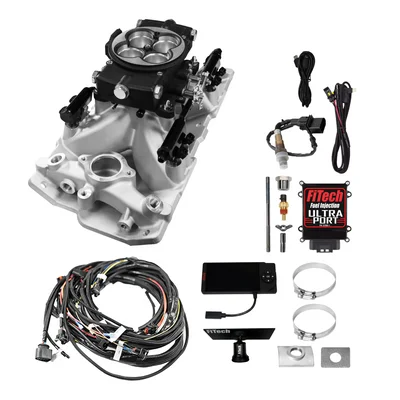

The FiTech 1000HP Small Block EFI 4150 Flange Classic Black (30-12-415) provides a comprehensive solution for upgrading your small block Chevy engine to modern electronic fuel injection. This kit is designed for high-performance applications, specifically those utilizing forced induction or nitrous oxide, and supports up to 1000 horsepower. It includes all essential components, such as an intake manifold, fuel rails, injectors, ECU, sensors, and a wiring harness, ensuring a complete and efficient installation.

KEY FEATURES AND BENEFITS:

• Supports up to 1000 horsepower: Suitable for high-performance engines.
• Multi-port injection: For precise fuel delivery and improved engine efficiency.
• Self-tuning ECU: For simplified setup and optimal performance.
• User-tunable capabilities: For advanced adjustments.
• Compatibility with various fuels: Gasoline, alcohol, methanol, and flex-fuel.
• Complete kit: Includes all necessary components for installation.
• Transmission controller included.
• 3-Bar TMAP sensor.

SPECIFICATIONS:

• Maximum Horsepower: 1000 HP (gasoline)
• Injection Style: Multi-port
• Metering Style: Speed density (MAP-N)
• Throttle Body: 4-barrel square bore, 64 mm venturi, 1000 CFM
• Injectors: 80 lbs/hr
• Fuel Compatibility: Gasoline, alcohol, methanol, flex-fuel
• Engine Block: Small Block Chevy (SBC), Standard Deck
• Intake Material: Cast aluminum
• ECU: Included, self-tuning, user-tunable
• Sensors: O2, MAP, IAT, TPS, IAC
• Transmission Controller: Included
• Weight: 41 lbs
• Dimensions: 19 × 18 × 29 inches

HOW TO USE:

• Preparation: Disconnect the vehicle’s battery. Remove the existing intake manifold and carburetor.
• Installation: Install the FiTech intake manifold onto the engine.
• Fuel System: Connect the included fuel rails and 80 lbs/hr injectors. (Fuel pump and regulator sold separately)
• Wiring: Install the wiring harness, connecting all sensors (O2, MAP, IAT, TPS, IAC) to the ECU.
• ECU Setup: Mount the ECU in a suitable location. Connect the handheld tuning device.
• Sensor Connections: Connect all provided sensors to the designated place on the engine, and to the wiring harness.
• Initial Tuning: Use the handheld tuning module to make initial adjustments based on your engine’s specifics.
• Self Tuning: Allow the system’s self-tuning capabilities to learn the engine’s operational parameters.
• Fine Tuning: Fine-tune all aspects of the system’s parameters with the handheld tuning device.
• Testing: After verifying all connections and settings, start the engine and test for proper operation.

BENEFITS OF USING THE FITECH 1000HP SMALL BLOCK EFI 4150 FLANGE CLASSIC BLACK (30-12-415):

• Improved Engine Performance: Enhanced throttle response.
• Enhanced Fuel Efficiency: And reduced emissions.
• Simplified Tuning: With self-learning capabilities.
• Reliable Performance: Under forced induction and nitrous applications.
• Modernization: Of classic engines with electronic fuel injection.

FEATURES:

• Robust cast aluminum intake manifold.
• High-flow 4-barrel throttle body with 64 mm venturis.
• High capacity 80 lbs/hr fuel injectors.
• Comprehensive sensor suite including 3-bar TMAP sensor.
• Onboard transmission controller.
• Compatibility with multiple fuel types.
