Esco Equipment 10201 Combi Bead Breaker Kit 2.5 Quart Hydraulic Air Pump

Description

Esco 10201 “Combi” Bead Breaker Kit – 2.5 Quart Hydraulic Air Pump

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

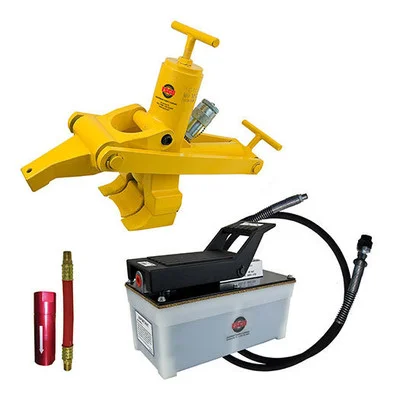

Includes:

• 10101 | “Combi” Bead Breaker Tool
• 10590 | 2.5 Quart Hydraulic Air Pump
• 10604 | 8′ Hose Assembly with Hose Coupler
• 10601K | 6″ Whip-Hose, Air Reducer

Esco 10101 Combi Bead Breaker

• Works on single, two and three piece truck tires/rims, including some new style wheels
• Breaks beads in seconds using 13.8 tons of force
• Clamping Jaw
• Redesigned Replaceable Pushing Foot
• Replaceable Teeth

Specifications:

• 13.8 Tons of Bead Breaking Force – 3.75″ Stroke (95mm)
• Weight | 36 lbs. (16 kg)

PLEASE NOTE, IMPORTANT INFORMATION:

• The “Combi” Bead Breaker will NOT work on five piece Earthmover giant wheel/rim. #10100 or the #10105 is required.

Esco 10590 2.5 Quart Air Hydraulic Pump

• High density 2.5 quart polyethylene reservoir
• Lightweight
• Air inlet filter keeps air clean
• 10,000 psi hydraulic pressure
• All metal air motor

Esco 10604 Hydraulic Hose Kit

Hydraulic hose with swivel fitting, hose won’t kink. Reinforced with 2 layers of braided steel. Use with any 10,000 psi. pump, ram, or bead breaker.

Specifications:

• Length | 8′ (8′ Hose with 3/8″ 18 Male Ends)
• Weight | 5 lbs. (2.2 kg)

Attachments Included:

• 10605 | Half Coupler

Esco 10601K Air Reducer with 6″ Whip-Hose

The ESCO Air Reducer, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, that is then used to power all ESCO Hydraulic Tools.

• Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, & Keep ESCO Hydraulic Products in their PRIME.
• Maintain recommended working air pressure
• Easy installation & usage
• Model #10601K comes with Air Reducer & 6″ Whip-Hose (Model #10601H)
• Can be used in conjunction with multiple ESCO products

10601K Specifications:

• Diameter | 15/16″ (24mm)
• Working Air Pressure | 110 PSI
• Air Inlet Size | 1/4″ NPT
• Weight | 1 lb. (0.5kg)

10601H Specifications:

• Length | 6″ (152.4mm)
