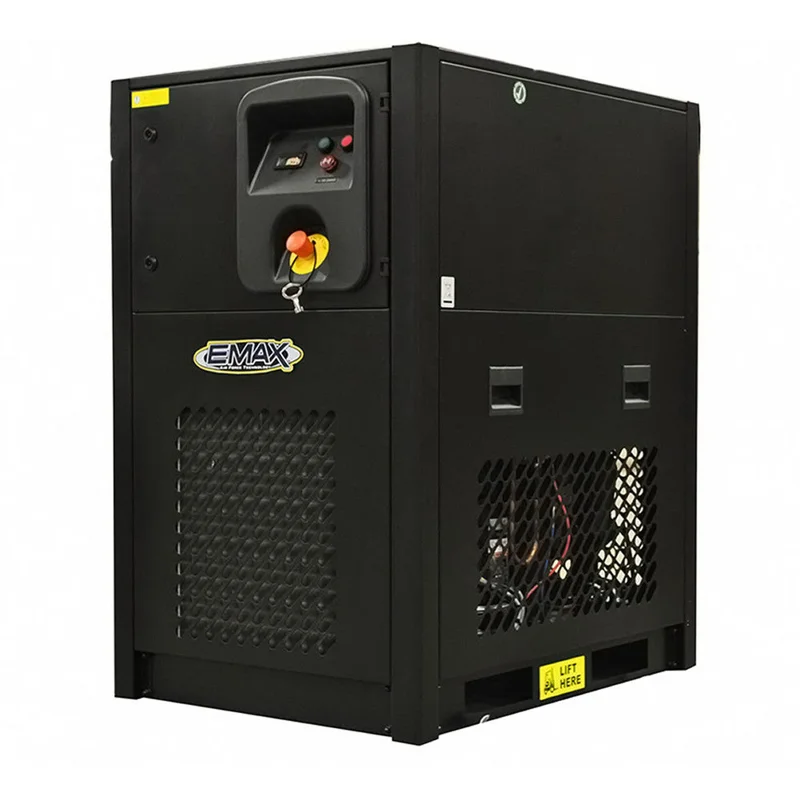

Premium Industrial 288 CFM Refrigerated Air Dryer
·Chills the air to condense & remove moisture; runs on 460 Volt, 3-phase, 14 Amp power
·230 PSI maximum; maximum inlet temp: 150°F; 37°F – 50°F dewpoint; designed for 2″ pipe
·Maximum ambient temperature: 120°F; for use with compressors that do not have aftercoolers
5 Micron Pre-Filter
·Removes larger dust & dirt particles from the air supply so the dryer can work more efficiently
1 Micron Active Coalescing Filter
·Removes oil & water particles from the air; cleaner, drier air improves tool life & project results
Refrigerated Air Inlet Inner Cooler
·Trouble-free high temperature cooling for consistent, dry air
Automatic Drain System
·Eliminates the need for daily maintenance
Outlet Air Baffle Heater
·Prevents condensation on outlet air piping
Side Mounted Condenser & Fan Motor
·Easy to reach & service through the cabinet doors- no screws to slow you down
·Uses environmentally friendly 134A refrigerant
Heavy Duty Steel Cabinet & Safety Shut-Off Valve
·Meets the demands of industrial use; valve shuts the compressor down if it gets over or below a safe temperature
2 Year Limited Factory Warranty; 5 Years On Heat Exchanger
| Overview | |
|---|---|
| Product Category | Air Compressor Accessories |
| Air Dryer | Yes |
| Dryer Voltage | 460V 3-Phase |
| Air Dryer CFM | 288 |
| Max PSI | 230 |
| Max Inlet Temp. Rating | 150 |
| Max Ambient Temp. Rating | 120 |
| Non-Cycling | Yes |
| Inlet Fittings | 2″ |
| Outlet Fittings | 2″ |
| Aftercooler | No |
| Pre-Filter | Yes |
| Post-Filter | Yes |
| Wall Mountable | No |
| Alarm Lights | No |
| Auto Drain | Yes |
| Regenerative | No |
| Rated HP | 60 |
| Dryer Magnetic Starter | Yes |
| Dry Amp Draw | 14 |
| Weight | 480 Pounds |
| Consumer Warranty | 2 Years |
| Commercial Warranty | 2 Years |
| Product Length | 26 Inches |
| Product Width | 42 Inches |
| Product Height | 54 Inches |
| Power Type | Electric |
| UPC | 815002013831 |
