Description

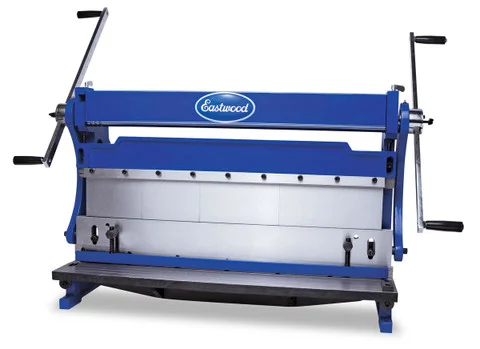

Eastwood 30 Inch 3 in 1 Shear Brake and Slip Roll (21304) combines three essential metalworking tools into one compact unit. It allows you to bend, roll, and shear sheet metal up to 30 inches wide, making it perfect for automotive, restoration, and fabrication tasks.
Adjustable stops ensure repeatable operations, while the spring-loaded hold-down enables single-handed use. Its sturdy cast iron construction and user-friendly design make it ideal for both professionals and DIY enthusiasts looking to streamline their sheet metal work.
- Specifications and Dimensions
- Material Length: 30 Inches
- Roller Diameter: 1.5 Inches
- Maximum Material Thickness (Steel): 20 Gauge
- Maximum Material Thickness (Stainless): 24 Gauge
- Maximum Material Thickness (Aluminum): 18 Gauge
- Finger Lengths: 1″, 2″, 3″, 6″, 8″, and 10″
- Wire Forming Sizes: 1/8″, 5/32″, and 3/16″
- Deepest Box Depth: 2.5 Inches
- Smallest Cylinder Diameter: 1.5 Inches
- Weight: 316 lbs.
- Construction: Cast Iron
- Overall Dimensions: 39″ x 15.5″ x 23″ Tall
- Mounting Hole Dimensions: 31-1/8″ x 13.5″
- Key Features and Benefits
- Combines shear, brake, and slip roll functions in one compact unit
- Handles a variety of metals, including steel, stainless steel, and aluminum
- Six removable fingers for creating boxes, pans, and complex shapes
- Spring-loaded hold-down for convenient single-handed operation
