Description
For use with CSP Valves.
-

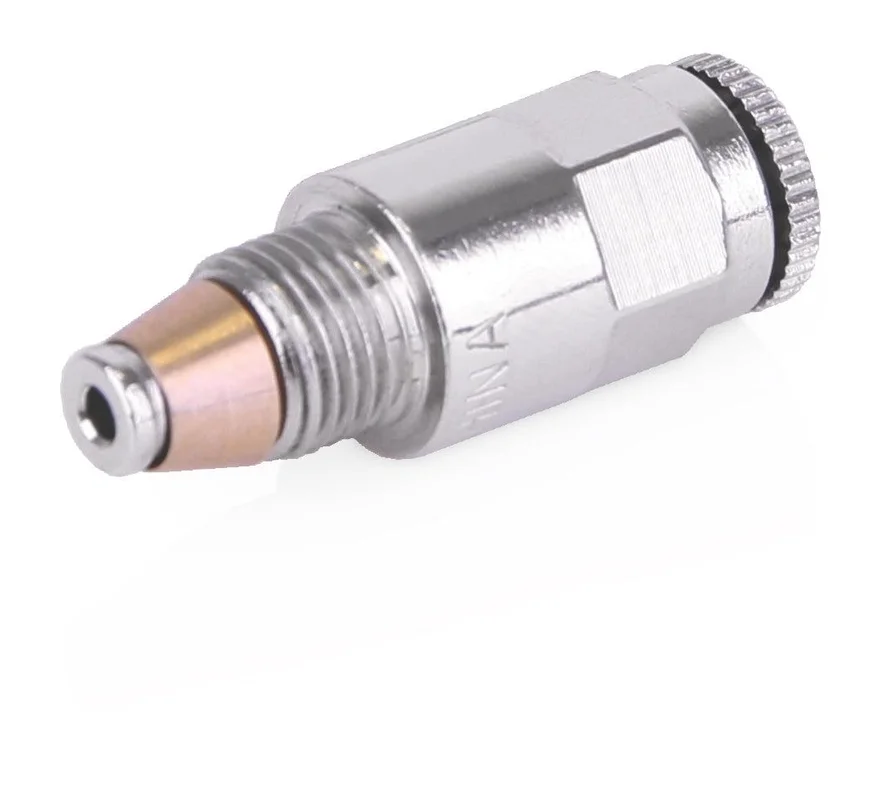

Push-to-Connect Fitting
-
1/4 inch OD tube x M10 with check valve, 625 psi (4.31 MPa, 43.1 bar)
UPC Product: 00755652401568 Family Code: FAMCPT Unit of Measure: EA Height: .5 IN |1.27 CM Length: 1.5 IN |3.81 CM Width: .5 IN |1.27 CM Volume: 0 FT3 |0 M3 Chargeable Weight: .05 LBS | .02 KG
Technical Specifications
| Connection Type | Push-to-Connect |
|---|---|
| Finish/Coating | Nickel |
| Material | Brass |
| Maximum Working Pressure (bar) | 43 |
| Maximum Working Pressure (kPa) | 4300 |
| Maximum Working Pressure (psi) | 625 |
| Size A (in) | 1/4 |
| Size A (mm) | 6.35 |
| Size B (in) | 1/4 |
| Size B (mm) | 6.35 |
| System of Measurement | Imperial |
| Type | Stud |
