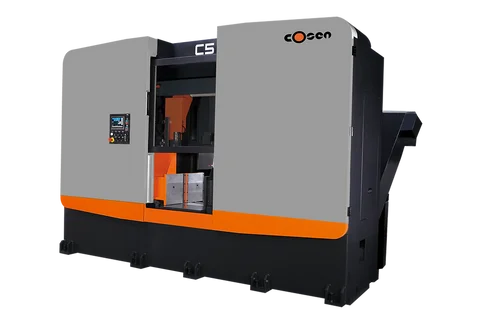

Cosen Fully Automatic Enclosed Horizontal Dual Post Band Saw (C-5)

Description

The Cosen C-Tech C5 band saw features Cosen’s advanced NC control system, offering programming for an automatic first (square) cut and storage of up to 100 jobs. The saw frame rides on linear guide ways (rails) and utilizes either a ball screw or a hydraulic system depending on the model. These designs provide a rigid base, ensuring the smoothest feeding, highest precision, and lowest friction guide system available today. With its rugged and dependable enclosed frame designed for safety and advanced technology, the Cosen C-Tech Series band saw is the perfect enclosed saw for mass production settings.

Machine Specifications:

• Round Capacity: 18.1″
• Rectangular Capacity (HxW): 18.1″ x 19.6″
• Blade Speed: 65 – 393 FPM
• Blade Size (LxWxT): 19′ 9.2″ x 2″ x .050″ / .063″
• Blade Motor: 10 HP
• Coolant Motor: 1/2 HP
• Coolant Tank Capacity: 37 gal
• Hydraulic Tank Capacity: 21.13 gal
• Workbed Height: 27.76″
• Weight: 8,377 lbs
• Floorspace (LxWxH): 78.75″ x 116″ x 92.7″

Note: This product cannot be returned.
