Description

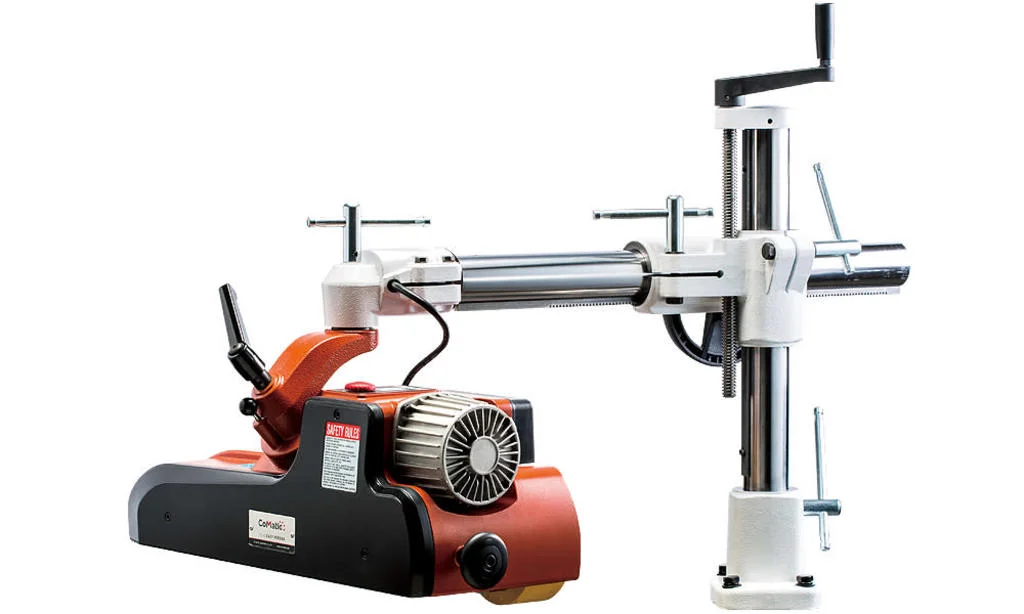

The Comatic DC40-1 Power Feeder is built for industrial-grade woodworking, delivering high torque with outstanding energy savings. Powered by a patented DC brushless servo motor, it matches the strength of a 1HP AC motor while reducing energy consumption by up to 70%. With digital speed control, modular roller options, and a robust stand, it offers versatility and precision for demanding operations.
Key Features & Benefits
Efficient Motor Reduces Energy Costs
• The DC brushless servo motor provides 2/3 HP output while consuming only 500W
• Delivers torque comparable to a 1 HP AC motor while reducing energy usage by up to 70%
• Energy savings help recover the investment within one year of operation
Precise Speed Control for Smooth Performance
• Digital controls allow feed speed adjustment from 2 to 22 m/min (7–72 FPM) without gear changes
• Maintains consistent speed across different loads for high-quality cuts
• Fine-tuning during production is quick and easy for maximum precision
Swivel Setup for Faster Adjustments
• Memo-locking swivel allows instant 90deg rotation to secure the feeder perpendicular or parallel
• Simplifies setup changes between machines and reduces overall adjustment time
• Ideal for complex routing, shaping, and high-mix production
Workpiece and Cutterhead Protection
• Detachable inner roller protects against blade damage during feeding operations
• Outer roller can be removed for extra router clearance when needed
• Tool-free roller replacement supports quick adjustments without delays
Universal Mounting for Greater Compatibility
• Heavy-duty cast-iron stand adjusts up to 250 mm in height and 440 mm in reach
• Easily mounts on a range of woodworking machines including shapers and routers
• Optional SS130 Smart Stand upgrade enhances flexibility and long-term durability
