Description

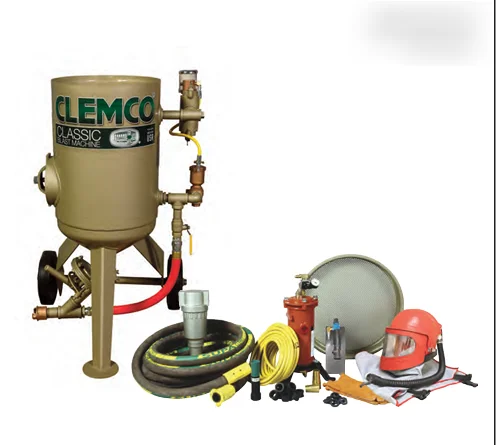

Classic Clemco – Tough, Reliable, Quality Blast Machines
- Semi-elliptical head for larger storage of abrasive.
- Pop-up valve umbrella (optional) relieves load pressure, when hopper is in place. Flexible pusher line guarantees air flow without pressure loss caused by elbows; and eases valve replacement.
- Chrome-plated forged brass ball valve with brass body for durability and long service life.
- Fast, safe TLR remote controls with solid brass valves built for years of dependability.
- Self-cleaning exhaust muffler greatly reduces bleed-off noise.
- 45° abrasive flow into air stream – the natural way to uniformly mix air and abrasive. Eliminates premature wear found in 90° systems.
- A tough stainless steel plate meters precisely.
- Clean-out provides access to foreign matter.
- Conical 35° bottom ensures total use of abrasive and uninterrupted abrasive flow. Heavy-gauge construction pressure vessel fabricated for rugged field service.
- Built to ASME standards. Most models registered in most Canadian provinces.
- Large 6” x 8” inspection door for easy access to inside.
- Urethane-coated pop-up valve with external sleeve for long life and fast pressurization
Includes
- TLR-300 remote controls (includes 10565 RLX handle) 01936
- Abrasive metering valve FSV 02427
- 50 ft. X 1-1/4” ID blast hose, coupled 23481
- NHP-2 Nylon nozzle holder (included in 23481) 04127
- CQPS-2 nylon quick coupling (included in 23481) 08413
- Blast hose safety cable 15013
- 1-1/2” Air filter with manual drain 22363
- TXP-6 blast nozzle 23525
- Blast machine screen (optional steel cover) 03099 (02335)
- Poly all-weather cover 15097
- Nylon tie (eight included with system) 02195 (each)
- Apollo 600 HP DLX helmet with Clem-Cool 25194
- 50 ft respirator hose 04415
- CPF-20 Breathing air filter with regulator 03578
- One pair leather gloves 02243
- One 25-pack helmet outer lens 04361
- One 5-pack Apollo 600 intermediate lens 24943
- Two 10-packs quick coupling gaskets 08853 & 00850
- One 10-pack nozzle washers 91026
- Abrasive trap screens (six included in system) 02012 (each)
The FSV, an original Clemco design, is the triedand-true work horse of the industry. It is among the most imitated Clemco components. It is standard on machines from 2-cubic feet to 20-cubic feet capacity
(-) FSV metering valve, complete ………………02427
1. Upper body ………………..02422
2. Valve …………………………02423
3. Gasket, rubber, 2 required ……………..02424
4. Disc-stainless ……………..02425
5. Lower body ………………..02426
6. Metering handle, heavy duty …………….20498
7. Cap screw, 1/4-NC x 1-1/4” hex head …..03054
8. Wing nut, 1/4-NC …………03113
9. Handle bolt spacer……….02431
10. Valve handle pin ………….20246
11. Gauge unit …………………02433
12. Set screw, 1/4-NC x 1/2” square head …03080
13. Spring, compression ……01982
14. Stud …………………………..02436
15. Packing gland …………….02437
16. O-ring, 7/8” OD …………..21165
17. Gasket, shaft ………………02439
18. Inspection plate …………..02440
19. Cap screw 5/16-NC x 1” hex head ……….03152
20. Wing nut, 5/16-NC ………03213
21. O-ring …………………………01990
22. Nipple, 1-1/2” x close …..01791
23. Wye, standard 1-1/4” …..01818
24. Nipple, 1-1/4” x 5” ……….01721
25. Nut, 1/2-NC hex ………….03511
26. Cap screw, 1/2-NC x 1-3/4” hex head …..03455
27. Washer, 1/4” flat ………….03116
28. Hitch pin …………………….20245
