Description

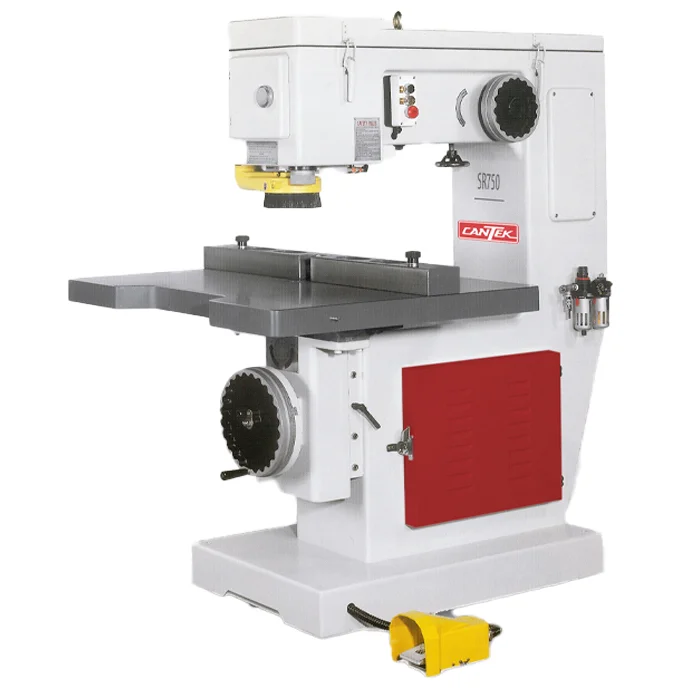

The Cantek SR750 Pin Router delivers industrial-grade routing performance with unmatched precision and power. Featuring a 7.5 HP dual-speed motor, pneumatic foot-pedal operation, and a tilting cast-iron table, this machine is purpose-built for high-volume template or freehand routing. Designed for shops demanding speed, control, and durability, the SR750 is your go-to solution for intricate profiling, shaping, and panel work.
Key Features & Benefits
Versatile Dual-Speed Motor for All Routing Tasks
• 7.5 HP spindle motor with selectable 10,000 or 20,000 RPM settings
• Optimized for both heavy cutting and fine-detail routing on wood and panel materials
• Magnetic switch provides reliable startup and built-in operator safety
Hands-Free Pneumatic Downfeed for Safe, Efficient Operation
• Foot pedal-activated pneumatic feed maintains hands-on control of workpieces
• Spindle travel up to 3-3/4″ accommodates deep and varied cut requirements
• Hydraulic end-feed damping ensures smooth, stable material engagement
Precision Spindle Assembly for Smooth, Quiet Performance
• GNP4-grade bearings support the ground and balanced spindle at high RPMs
• Designed to minimize vibration and thermal expansion for continuous accuracy
• Delivers consistent results with reduced wear on internal components
Adjustable Depth and Feed for Repeatable Results
• Three-position turret enables fast, repeatable depth changes
• Tool-free knurled knob simplifies depth adjustment on the fly
• Adjustable pneumatic feed speed helps optimize cut quality and safety
Heavy-Duty Tilting Table Increases Routing Flexibility
• Precision-ground cast-iron table tilts up to 45-deg for angled routing
• Rigid, ribbed construction eliminates vibration and ensures table stability
• Steel fence and slotted surface support template routing and straight-line operations
Engineered for Long-Term Industrial Use
• Durable drive belt system with adjustable handwheel tensioning
• Grease fittings and auto-lubrication enhance machine life and reliability
• Designed for continuous-duty use in demanding woodworking environments
