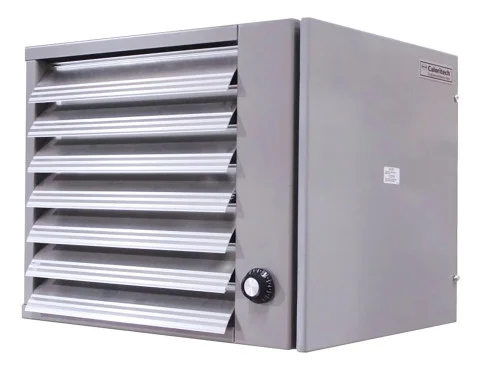

Caloritech 30kW 600V GX Forced Air Unit Heater w/T‘stat (GX308CT)

Description

The Caloritech 30kW 600V GX Forced Air Unit Heater w/T’stat (GX308CT) is a specialized heating solution engineered for the most demanding industrial environments. As part of the Heavy Duty GX Series, this unit is designed to provide substantial and consistent heat in challenging settings where standard heaters may fail to perform adequately. Delivering 30 kilowatts of heating power, equivalent to 102,360 BTUs per hour, it effectively warms large industrial spaces. Its construction features a robust 14-gauge steel cabinet with an epoxy painted finish, offering superior resistance to corrosion and environmental wear. An integrated thermostat allows for precise temperature control, adjustable from 41°F to 100°F (5°C to 38°C), ensuring optimal comfort and energy management. The GX308CT is an ideal choice for facilities requiring reliable, long-term heating performance with minimal downtime, such as mine shafts, pulp and paper mills, hoist houses, and various industrial workshops. Its design prioritizes operational continuity and reduced maintenance costs in heavy-duty applications.

KEY FEATURES AND BENEFITS:

• Heavy Duty Industrial Heating: Specifically engineered for continuous, reliable heating in challenging industrial environments, ensuring warmth in critical operational areas.
• High Heating Output: Delivers 30 kW (102,360 BTU/hour) of heat, capable of effectively warming large industrial spaces.
• Integrated Temperature Control: Features a built-in thermostat with an adjustable range of 41°F to 100°F (5°C to 38°C) for precise environmental control.
• Corrosion-Resistant Construction: The 14-gauge steel cabinet with epoxy paint finish provides enhanced protection against rust and environmental damage, extending product life.
• Reduced Maintenance: Designed with robust components and construction to minimize downtime and lower long-term maintenance expenses in demanding applications.
• Optimized Airflow: Features a 2,100 CFM blower with individually adjustable louvres to direct heat efficiently where needed.
• Enhanced Safety Features: Includes an automatic reset high-limit control to prevent overheating, ensuring safe operation.

SPECIFICATIONS:

• Model Number: GX308CT
• Heating Output: 30 kW
• Voltage: 600 V
• Phase: 3-phase
• Amperage: 28.9 Amps
• Blower CFM: 2,100 cfm
• Thermostat Range: 41°F to 100°F (5°C to 38°C)
• Dimensions (L x W x H): 31 in x 23 in x 18.5 in
• Weight: 109 lbs
• Motor HP: 1/3 HP
• Construction Material: 14-gauge steel cabinet, epoxy painted (ASA61 Grey)

HOW TO USE:

1. Mounting: Securely mount the unit using the supplied ceiling mounting bracket. The heater can be positioned for either horizontal or vertical airflow, depending on your space heating requirements. Ensure it is installed in a location that allows for proper air circulation and meets all safety clearances.
2. Electrical Connection: A qualified electrician must hardwire the heater to a dedicated 600V, 3-phase electrical circuit. Follow all local electrical codes and the wiring schematics provided in the heater’s installation manual.
3. Thermostat Setting: Once powered, adjust the built-in thermostat dial to your desired temperature within the 41°F to 100°F (5°C to 38°C) range. The heater will activate when the ambient temperature falls below the set point.
4. Airflow Adjustment: Adjust the individual louvres on the front of the heater to direct the heated air towards the specific areas requiring warmth.
5. Monitoring and Maintenance: Regularly check the unit for any obstructions to airflow. Refer to the product manual for recommended maintenance schedules, which typically involve periodic cleaning of heating elements and fan blades to ensure optimal performance and longevity.

BENEFITS OF USING CALORITECH 30KW 600V GX FORCED AIR UNIT HEATER W/T’STAT (GX308CT):

• Consistent Heating: Provides dependable heat output to maintain stable working conditions in industrial environments.
• Durability: Built for longevity, reducing the frequency of repairs and minimizing operational downtime.
• Cost Efficiency: Lowers maintenance and energy costs through efficient performance and strong materials.
• Precision Control: Adjustable thermostat allows for fine-tuned temperature settings that improve workplace comfort.
• Protection for Assets: Maintains temperature stability to safeguard temperature-sensitive equipment and materials.
• Industrial Suitability: Ideal for tough environments like hoist houses, mills, and workshops due to its rugged construction and high capacity.

FEATURES:

• CSA C/US approved for both horizontal and vertical airflow configurations.
• Motor is positioned externally to the element bundle, facilitating easier servicing and improved cooling.
• Equipped with a fan delay function during both heating and cooling cycles.
• Features a large, hinged, and removable control panel door designed to EEMAC 12 standards.
• Includes continuous fan terminals for integration with a remote switch, enabling fan-only operation.
• Utilizes Caloritech™ type KX finned tubular sheathed elements with sealed terminals to resist contamination.
• Fan blade is made of aluminum and factory-balanced for smooth operation.
• Motor features sealed ball bearings and a totally enclosed construction for extended life.
• The cabinet is constructed from heavy-gauge steel, enhancing overall structural integrity.
• Supplied with a dedicated ceiling mounting bracket for ease of installation.
