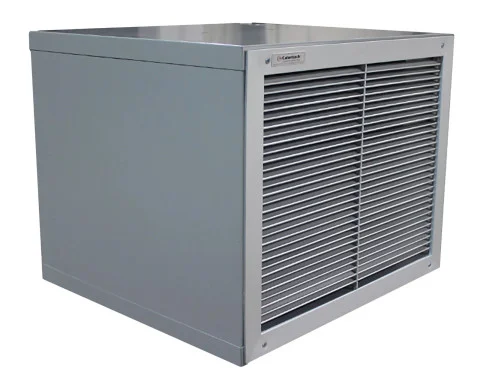

Caloritech 20kW 600V GE Forced Air Unit Heater w/T‘stat (GE208CT)

Description

The Caloritech 20kW 600V GE Forced Air Unit Heater w/T’stat (GE208CT) is engineered for consistent heating in regular duty industrial and commercial settings. This unit delivers 20 kilowatts of forced air heat, equivalent to 68,240 BTU/hour, ensuring effective temperature maintenance across various spaces. Its robust 18-gauge steel cabinet, finished with ASA61 Grey epoxy paint, provides a resilient and corrosion-resistant exterior. The heater’s tubular heating elements are designed for efficient heat transfer. Powered by permanently lubricated motors with built-in thermal overloads and totally enclosed ball bearings, the motor is strategically mounted outside the element bundle to prevent premature wear and simplify maintenance. The integrated thermostat allows for precise temperature control, with a range of 41°F to 100°F (5°C to 38°C), and includes a manual reset high limit for enhanced safety. Adjustable air flow louvers enable directional control of the heated air, while the supplied ceiling mounting bracket offers flexible installation options.

KEY FEATURES AND BENEFITS:

• Consistent Heating Capacity: Delivers 20 kW (68,240 BTU/hour) of heat output to maintain optimal room temperature in large spaces.
• Durable Construction: Features a robust 18-gauge steel cabinet finished with corrosion-resistant ASA61 Grey epoxy paint.
• Thermostatic Control: Integrated thermostat allows for temperature adjustment from 41°F to 100°F (5°C to 38°C).
• Motor Efficiency: Permanently lubricated motors with thermal overloads are mounted externally to ensure longevity and serviceability.
• Airflow Management: Adjustable louvers enable precise direction of heated air.
• Safety Features: Equipped with a manual reset high limit control to prevent overheating.
• Easy Installation: Includes a ceiling mounting bracket for secure and convenient placement.

SPECIFICATIONS:

• Heat Output: 20 kW (68,240 BTU/hour)
• Voltage: 600V (1-phase or 3-phase, field convertible)
• Amperage: 34.3 Amps
• Blower CFM: 1,260 CFM
• Thermostat Range: 41°F to 100°F (5°C to 38°C)
• Dimensions (L x W x H): 22.0 inches x 24.0 inches x 19.5 inches
• Product Weight: 100 lbs
• Cabinet Material: 18-gauge steel, epoxy painted (ASA61 Grey)

HOW TO USE:

1. Mounting: Securely mount the unit to the ceiling using the supplied ceiling mounting bracket. Ensure the mounting surface can support the heater’s weight and that there is adequate clearance around the unit for proper airflow and maintenance. An optional wall bracket may be used if preferred.
2. Electrical Connection: Connect the heater to a 600V power supply according to local electrical codes and the provided wiring diagrams. The unit is field convertible between 1-phase and 3-phase, so ensure the wiring matches the selected phase configuration.
3. Thermostat Setting: Adjust the integrated thermostat to your desired temperature within the 41°F to 100°F (5°C to 38°C) range. The heater will cycle on and off to maintain this set temperature.
4. Airflow Adjustment: Direct the heated air by adjusting the airflow louvers on the front of the unit to optimize heat distribution within the space.
5. Operation Monitoring: Monitor the heater’s operation. In case of an overheat condition, the manual reset high limit will trip, shutting off the unit. Allow the unit to cool before manually resetting the high limit if this occurs.
6. Maintenance: Periodically check the unit for dust accumulation and ensure that air inlets and outlets are not obstructed to maintain optimal performance and prevent overheating.

BENEFITS OF USING CALORITECH 20KW 600V GE FORCED AIR UNIT HEATER W/T’STAT (GE208CT):

• Consistent Area Heating: Provides reliable and uniform warmth across industrial and commercial spaces, eliminating cold spots.
• Energy Management: The integrated thermostat allows for precise temperature regulation, which can help in managing energy consumption by heating only when necessary.
• Enhanced Safety Features: Includes a manual reset high limit, providing an important safety measure against overheating.
• Ease of Installation: Comes with a ceiling mounting bracket, facilitating straightforward installation in various environments.
• Reduced Maintenance Needs: Features permanently lubricated motors and a motor placement that aids in longevity, contributing to lower maintenance requirements.
• Versatile Application: Suitable for a wide array of regular duty commercial and industrial settings, from large warehouses to smaller commercial storefronts.

FEATURES:

• CSA C/US certified for safety standards compliance.
• Offers field convertibility between 1-phase and 3-phase power supply.
• Equipped with tubular heating elements for consistent performance.
• Features an 18-gauge steel cabinet finished with an ASA61 Grey epoxy paint.
• Motor is positioned external to the heating element bundle for enhanced cooling and serviceability.
• Blower delivers 1,260 cubic feet per minute (CFM) of air.
• Designed for indoor use in non-hazardous locations.
• Supports adjustable airflow through its louvers.
• Utilizes totally enclosed ball bearings in the motor for increased lifespan.
• Thermal overloads are built into the motor for protection.
