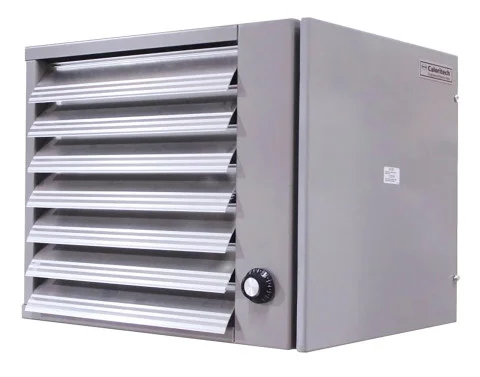

Caloritech 15kW 600V GX Forced Air Unit Heater w/T‘stat (GX158CT)

Description

Caloritech 15kW 600V GX Forced Air Unit Heater w/T’stat (GX158CT) is a specialized heating solution built for rigorous industrial and commercial environments. This heavy-duty unit is engineered to provide consistent and reliable forced air heating in challenging settings, minimizing operational downtime and maintenance requirements often associated with standard heaters. It is suitable for a wide range of demanding applications where dependable heat supply is crucial.

KEY FEATURES AND BENEFITS:

• Optimized for Industrial Use: Specifically designed for heavy-duty operation in critical industrial environments, including mine shafts, pulp and paper mills, hoist houses, welding shops, maintenance shops, and chemical plants.
• High Output Heating: Delivers substantial warmth with a 15,000 Watt (15 kW) power output and 51,180 Btu/hour heat output, effectively heating large industrial spaces.
• Robust Construction: Features a 14-gauge steel cabinet with an epoxy painted finish, offering enhanced resistance to corrosion and wear in challenging conditions.
• Integrated Temperature Control: Equipped with a built-in thermostat, providing temperature regulation from 41°F to 100°F (5°C to 38°C) for precise environmental control.
• Safety and Reliability: Incorporates multiple safety features including automatic and manual reset high-limits, a disconnect switch with door interlock, and fused circuits to ensure safe operation.
• Reduced Maintenance: Its heavy-duty design and component selection contribute to lower long-term maintenance costs and increased operational uptime compared to lighter-duty alternatives.
• Versatile Airflow: CSA approved for both horizontal and vertical air flow, with individually adjustable louvres to direct heat where it is most needed.

SPECIFICATIONS:

• Power Output (Wattage): 15,000 Watts (15 kW)
• Voltage: 600 Volts
• Phase: 3 Phase (3Ø)
• Amperage: 15.5 Amps
• Heat Output: 51,180 Btu/hour
• Blower CFM: 1,800 cfm
• Thermostat Range: 41°F to 100°F (5°C to 38°C)
• Dimensions (Assembled):
• Length (Depth): 31 inches (787 mm)
• Width: 23 inches (584 mm)
• Height: 18.5 inches (470 mm)
• Product Weight: 105.0 lbs (47.6 kg)
• Motor: 1/3 HP
• Cabinet Material: 14-gauge steel
• Cabinet Finish: Epoxy painted (ASA61 Grey)

HOW TO USE:

1. Mounting: Permanently mount the heater in a suitable location. Ensure the mounting surface is strong enough to support the heater’s weight and minimize vibration. The unit can be mounted horizontally or vertically.
2. Electrical Connection: Connect the heater to a 600V, 3-phase power supply by hardwiring it. Ensure all electrical connections are made by a qualified electrician and adhere to local electrical codes.
3. Power On: Once safely installed and wired, turn on the main power supply to the unit.
4. Set Thermostat: Use the built-in thermostat to set the desired temperature within its operating range of 41°F to 100°F (5°C to 38°C).
5. Adjust Louvres: Adjust the individually controlled louvres to direct the heated air flow towards the desired area in the space.
6. Operation Monitoring: The heater will automatically activate its fan and heating elements as needed to maintain the set temperature. Monitor its operation and refer to the owner’s manual for detailed instructions on maintenance and troubleshooting.

BENEFITS OF USING CALORITECH 15KW 600V GX FORCED AIR UNIT HEATER W/T’STAT (GX158CT):

• Provides consistent and efficient heating in large industrial spaces.
• Designed to withstand harsh operating conditions, extending product lifespan.
• Contributes to a safer working environment with integrated safety features.
• Helps reduce operational costs through improved efficiency and lower maintenance needs.
• Offers flexible installation options for various industrial layouts.
• Ensures precise temperature management for comfort and process requirements.

FEATURES:

• External motor mounting: 1/3 HP motor is mounted outside the element bundle, facilitating easier maintenance and reducing heat-related stress on the motor.
• Sealed bearings: Motor features sealed ball bearings and totally enclosed construction for enhanced longevity in demanding environments.
• Corrosion-resistant elements: Caloritech™ type KX finned tubular sheathed elements are nickel plated and alloy, with epoxy sealed terminals to protect against moisture and airborne impurities.
• EEMAC 12 control panel: Full-sized control panel with a hinged, removable door, constructed to EEMAC 12 standards for industrial enclosure ratings.
• HRC main load fuses: Equipped with high rupturing capacity main load fuses for reliable overcurrent protection.
• Fan delay control: Features fan delay in both ON and OFF cycles for optimized performance and cool-down.
• Continuous fan terminals: Includes dedicated terminals for connecting to a remote switch for continuous fan operation.
• Ceiling mounting bracket: Supplied with a sturdy bracket for convenient ceiling installation.
• Balanced fan blade: Factory-balanced aluminum fan blade ensures smooth and quiet operation.
