Description

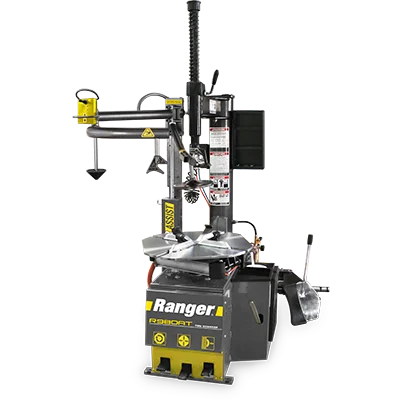

5140147 R980AT Swing-Arm Tire Changer W/Assist / 208-240V, 1-Ph., 50/60hz / GRAY-YELLOW
The R980AT saves an impressive amount of space, making it ideal for small or cramped tire shops. Because it utilizes a swing-arm design and doesn’t tilt back, it can be installed flush against a wall. An assist tower will help with stiffer sidewalls, run-flats and other low-profile tires. 30″ clamping ability.
Features
- Air Requirement 140 – 165 psi (10-11 BAR)
- Wheel Clamping Method
- 4 Clamps – Internal / External
- Table Clamping System
- Dual Pneumatic Cylinders
- Bead Breaking System
- Pneumatic Blade / Dual Settings
- Power Assist Towers
- Single Assist Tower
- Tool Holder
- Manual Lock
- Inflation Gauge With Integrated Air Dump Valve
- Inflation Pressure Regulator/Limiter
- Water Filter
- Oiler / Lubricator
- Air Regulator
- Breaker Bar
- Large Soap / Lubricator Bucket
- Brush
- Tower Design
- Rigid Fixed / Swing Arm
- Bead Lifting Roller(s)
- Single Lifting Roller
- Alloy-Steel Mount/Demount Head
- Plastic-Polymer Mount/Demount Head
- Upper Bead Assist Roller
- Traveling Drop-Center Hold Down Device
- Inflation Restraint Device
- Bead Seating System
- Turbo Blast / Bead Seating
- Tool Tray / Bin Storage
- Motorcycle Turntable Clamps (Optional)
| Style: | Fixed Tower Design |
| Assist | |
| Assist Type: | Single-Tower Assist |
| Speed | |
| Speed: | Standard |
| Motor | 3 HP (220 VAC 50-60 HZ) |
| Drive System Type | Electric / Air |
| Air Requirement | 140-165 PSI (10-11 BAR) |
| Wheel Clamping Method | 4 Clamps – Internal / External |
| Table Clamping System | Dual Pneumatic Cylinders |
| Bead Breaking System | Pneumatic Blade / Dual |
| Tower Design | Rigid Fixed / Swing Arm |
| Power Assist Towers | Single Assist Tower |
| Bead Lifting Roller(s) | Single Lifting Roller |
| Bead Seating System | Turbo Blast / Bead Seating |
| Internal Rim Clamping Capacity | 10” – 30” (254 mm – 762 mm) |
| External Rim Clamping Capacity | 9” – 28” (229 mm – 711 mm) |
| Turntable Tire Width Capacity (Mounting) | 4” – 18” (102 mm – 457 mm) |
| Bead Breaker Tire Width Capacity (Demounting) | 1.5” – 13” (38 mm – 330 mm) |
| Maximum Tire Diameter | 50” (1,270 mm) |
| Shipping Weight | 900 lbs. (408 kg) |
| Shipping Dimensions | 51” x 45” x 73” (1,295 mm x 1,143 mm x 1,854 mm) |
