Description

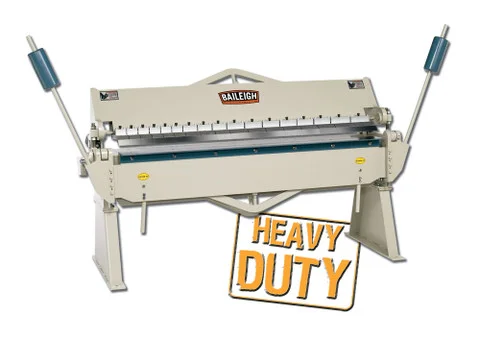

Baleigh 6′ Heavy Duty Manually Operated Box and Pan Brake 12 Gauge Steel Capacity (1000536) is designed for precision and durability in metalworking. This 6-foot brake can bend 12 gauge mild steel over its entire length, making it a versatile tool for various projects.
The 1000536 box and pan brake 12 gauge allows for a maximum bend angle of 135° and a 6” box depth. The three-piece finger design lets you set up a long straight brake or a segmented one for creating boxes or pans. The two counterbalance weights reduce operator strain, making it easier to bend at maximum capacity.
- Specifications and Dimensions
- Length: 96 in.
- Width: 32 in.
- Height: 43 in.
- Net Weight: 2260 lbs
- Beam Adjustment (Front to Rear): 1″
- Maximum Box Depth: 6″
- Mild Steel Capacity: 12 gauge
- Maximum Bend Angle: 0 – 135°
- Overall Length: 72″
- Key Features and Benefits
- 6-foot length with 12 gauge mild steel capacity
- 17 hardened fingers of varying sizes
- Maximum bend angle of 135°
- 3-piece finger design for versatility
- Counterbalance weights for reduced operator strain
- Electro-welded and truss-supported steel frame
- Heavy-duty steel floor stand for optimal working height
- 1-year parts warranty and lifetime technical support
