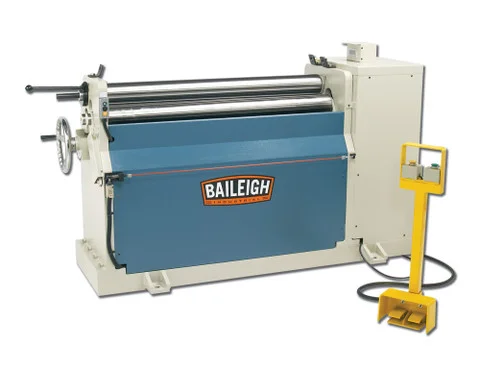

Baleigh 220V 3Phase Hydraulic Plate Roll 4′ Length 9 Gauge Mild Steel Capacity (1006517) is designed to enhance efficiency in metalworking tasks. This powerful machine features a 2 hp motor that runs on 220-volt 3-phase power, controlling the movement of the back roll and all three forming rolls.
The 1006517 4 foot hydraulic plate roll operates with an industrial-grade hydraulic system, reducing forming time and increasing productivity. The digital readout shows the position of the back roll for easy repeatability, while the control pedestal includes forward and reverse foot pedals and buttons for up and down movements.
- Specifications and Dimensions
- Length: 98 in.
- Width: 39 in.
- Height: 60 in.
- Net Weight: 3590 lbs
- Forming Width: 48″
- Roll Speed: 5.85 rpm
- Upper Roll Dia.: 4.75″
- Roll Adjustment Back: Hydraulic
- Minimum Forming Dia: 7.125″
- Motor: 2 hp
- Capacity (Mild Steel): 9 ga. (.150″)
- Power: 220V / 3-phase
- Key Features and Benefits
- Operated entirely by an industrial-grade hydraulic system
- Digital readout for easy repeatability
- Full steel frame to maintain accuracy and prevent deflection
- Emergency stop cable on front and back for safety
- 2 hp motor with 220-volt 3-phase power
- Convenient control pedestal with forward/reverse foot pedals
- Lifetime technical support by phone
