Description

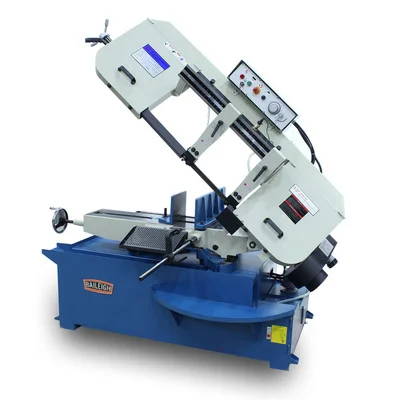

Baleigh 220 Volt 3 Phase Metal Cutting Band Saw with Mitering Vice and Head 13″ Capacity (1001517) is designed for precision and efficiency in metal cutting. This band saw features a maximum capacity of 13” OD round at 90°, making it ideal for a variety of materials, including metal, plastic, and wood.
The 1001517 metal cutting saw comes equipped with a variable blade speed from 82 to 270 fpm, allowing you to choose the optimal speed for your cutting needs. The saw head miters up to 45°, and the hydraulic descent increases blade life and reduces operator fatigue.
- Specifications and Dimensions
- Length: 90 in.
- Width: 37 in.
- Height: 63 in.
- Net Weight: 1826 lbs
- Miter Angle: 0 – 45°
- Motor: 3 hp
- Capacity Rectangular 90° x 45°: 13″ x 18.9″ / 11″ x 10.04″
- Capacity Round 90° x 45°: 13″ x 8.86″
- Capacity Square 90° x 45°: 13″ x 8.86″
- Table Height: 30.5″
- Blade Guide: Carbide x Roller
- Blade Size: 1.3″ x .043″ x 161.4″
- Blade Speed (fpm): 82–270
- Descent Control: Hydraulic
- Drive: Belt x Pulley
- Power: 220V / 3-phase
- Key Features and Benefits
- Maximum 13” OD round capacity at 90°
- Variable blade speed from 82 to 270 fpm
- Hydraulic descent for increased blade life
- Durable steel flywheels
- Flood coolant system included
- Heavy electro-welded steel construction
- Automatic shut-off safety feature
- 1-year parts warranty
- Lifetime technical support by phone
