Description

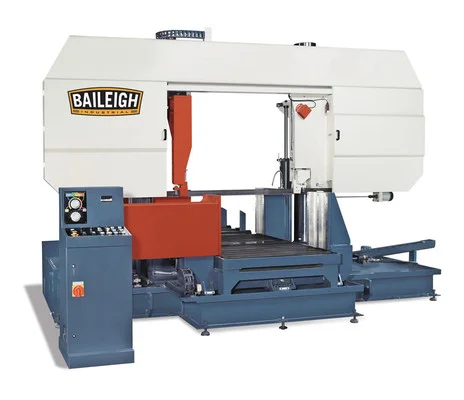

Baileigh Semi Automatic Heavy Duty Column Type Band Saw 43″ Round Capacity (1001039) is the largest in our horizontal band saw line, built to cut huge stock 24 hours a day. The 15 hp motor runs on 220-volt 3-phase power, driving a standard 2.638” blade (included) for fast, accurate cutting.
This 1001039 heavy-duty band saw features a steel frame that reduces vibrations and an industrial-grade hydraulic system that saves you time and effort. The hydraulic system manages the vise, descent, feed, and bow return, ensuring smooth and efficient production.
- Specifications and Dimensions
- Length: 219 in.
- Width: 91 in.
- Height: 158 in.
- Net Weight: 20500 lbs
- Capacity Square: 43.3″
- Capacity Round: 43.3″
- Table Height: 26.772″
- Blade Guide: Hydraulic Carbide
- Blade Size: 2.638″ x .063″ x 385.827″
- Blade Speed: 65.6 – 278.87 fpm
- Drive: Inverter
- Power: 220V / 3-phase
- Motor: 15 hp
- Key Features and Benefits
- Hydraulic system for smooth operation
- Hydraulic carbide blade guide system
- Hydraulic blade tension device
- 2-meter roller infeed table
- Electro-welded steel framework for stability
- Powered wire chip brush and automatic chip conveyor
- 1-year parts warranty
- Lifetime technical support by phone
