Description

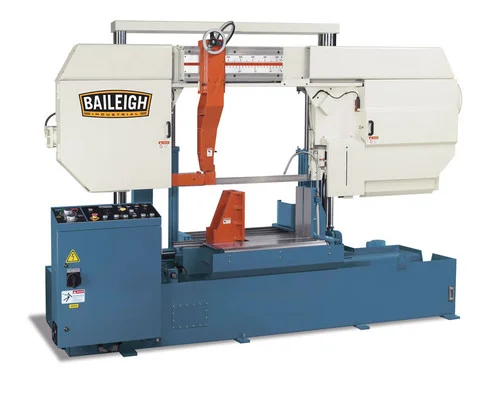

Baileigh Semi Automatic Heavy Duty Column Type Band Saw 27.5″ Round (1013601) is designed to handle large stock with ease. With a robust 10 hp motor running on 220V 3-phase power, this band saw ensures smooth and powerful cutting operations. The 27.5” round cutting capacity and 29.75″ x 27.5″ rectangular capacity make it versatile for various cutting needs.
This semi-automatic band saw features an inverter-driven speed system, offering a variable speed range of 65 to 279 fpm. The hydraulic clamping vise and automatic return function save time during production runs, enhancing efficiency.
- Specifications and Dimensions
- Length: 150 in.
- Width: 91 in.
- Height: 103 in.
- Net Weight: 9050 lbs
- Motor Phase: 3 Ph
- Stationary Type: Horizontal Band Saw
- Capacity Square: 27.5″
- Capacity Rectangular: 29.75″ x 27.5″
- Return: Hydraulic
- Motor: 10 Hp
- Table Height: 26.75″
- Blade Guide: Hydraulic Carbide
- Blade Size: 2.126″ x .063″ x 283.465″
- Blade Speed (fpm): 65 – 279 (Variable Speed)
- Drive: Inverter
- Voltage: 220 V
- Key Features and Benefits
- 27.5” round cutting capacity
- Inverter-driven speed system for variable speed adjustment
- Hydraulic clamping vise and automatic return for efficiency
- Rigid cast iron bow for clean, high-quality cuts
- Hydraulic carbide blade guide system for blade stability
- Patented hydraulic blade tension device for easy tension adjustment
- Includes 2-meter roller table with rack and pinion conveyor
- Powered wire chip brush and automatic chip removal conveyor for maintenance
- Fully-welded steel construction for structural strength
- 1-year parts warranty and lifetime technical support
