Description

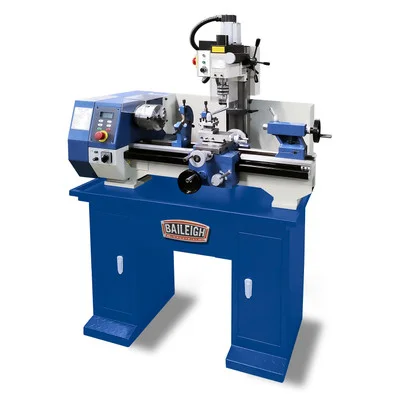

Baileigh MLD-1022 Mill Lathe Drill Combo 10″ Swing 22″ Between Centers (1228216) is the perfect solution for small shops that need versatility and precision. This combo machine combines a lathe, mill, and drill, providing all the features you need for efficient machining.
Sturdily built with an MT-2 taper, the 1228216 mill lathe drill combo offers all the features you’d want, including a DRO and independent motors. Runs on 110 volts, just plug it into a standard outlet. Two independent 1 hp motors (for the lathe and the mill) reduce wear and tear and give this combination machine a longer life.
- Specifications and Dimensions
- Cross Slide Travel (In.): 4.5
- Distance Between Centers (In.): 22″
- Distance Spindle to Column (Max.) (In.): 6.5″
- Input Power: 120V
- Model Number: MLD-1022
- Motor (HP): 1
- Shipping Dimensions (L x W x H) (In.): 69x44x55
- Spindle Bore (In.): 1.1
- Spindle Distance to Table (Max.) (In.): 8.375
- Spindle Taper: MT4
- Swing Over Bed (In.): 9.75″
- Swing Over Cross Slide (In.): 5.7″
- Tailstock Spindle Travel (In.): 2″
- Weight (Lbs.): 450
- Width of Bed (In.): 5.3
- Key Features and Benefits
- Runs on 110 volts, easily plugs into a standard outlet.
- Two independent 1 hp motors for the lathe and mill, ensuring longer machine life.
- Adjustable lathe speed from 50 to 2,250 rpm with DRO for precision cutting.
- Steady rest and follow rest reduce vibrations for more accurate machining.
- Includes 3-jaw and 4-jaw chucks for holding both square and round materials.
- Robust MT-4 spindle taper on the lathe and MT-2 on the mill.
- Yoke on stationary mill allows use as a traditional drill press.
- Precision-ground and hardened ways for durability and high-quality machining.
