Description

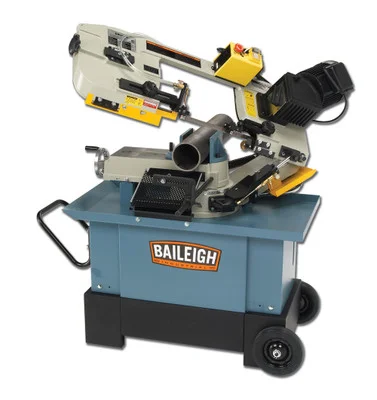

Baileigh Metal Cutting Band Saw (1001684) offers versatility with its dual operation modes. Powered by a 120-volt single-phase motor, this band saw is perfect for cutting metal in both horizontal and vertical positions, ensuring precise cuts every time.
The Baileigh 1001684 metal cutting band saw features a 7” OD round and 7” x 10-1/4” rectangle capacity in the horizontal position. It offers three cutting speeds: 125, 215, and 270 fpm. The cast iron head and bow are machined for accurate alignment, and the saw includes a swivel head for mitering cuts, enhancing its efficiency and versatility.
- Specifications and Dimensions
- Length: 60 in.
- Width: 44 in.
- Height: 48 in.
- Net Weight: 530 lbs
- Miter Adjustment: Swivel Head
- Miter Angle: 0 – 45°
- Motor: 1 hp
- Capacity Rectangular 90 x 45 x 45L: 7″ x 10.23″ x 4.72″ x 4.13″
- Capacity Round 90° x 45°: 7″ x 4.33″
- Table Height: 23″
- Blade Guide: Roller
- Blade Size: .75″ x .035″ x 92.91″
- Blade Speed (fpm): 125 x 215 x 270
- Descent Control: Hydraulic
- Drive: Gear
- Power: 120V, 1-phase
- Key Features and Benefits
- Powered by 120-volt single-phase power, so you can run it just about anywhere
- Capacity of 7” OD round and 7” x 10-1/4” rectangle in horizontal position (for traditional cutoffs) at 90°
- Accepts standard .75″-wide blades
- Choose from 3 cutting speeds: 125, 215, and 270 fpm
- Cast iron head and bow, machined to exacting tolerances, ensure proper alignment during the cutting process and help the saw last for years
- Operate the machine in vertical position (for precise shape cutting) just by lifting the bow and locking it in place
- Swivel head for mitering allows for faster production times and less waste than you’d get with a moving vise
- Pair of adjustable blade guides, attached to the saw head along with 8 sealed ball bearings, maintain alignment and increase the life of the blade
- Fully-welded steel plate framework keeps the machine stable and gives it the structural strength to tackle its maximum capacity
- Wheels on the base make this saw easy to move and store
- Comes standard with a flood coolant system, often considered an upgrade by other brands, and a chip removal brush
- 1-year parts warranty
- Includes lifetime technical support by phone
