Description

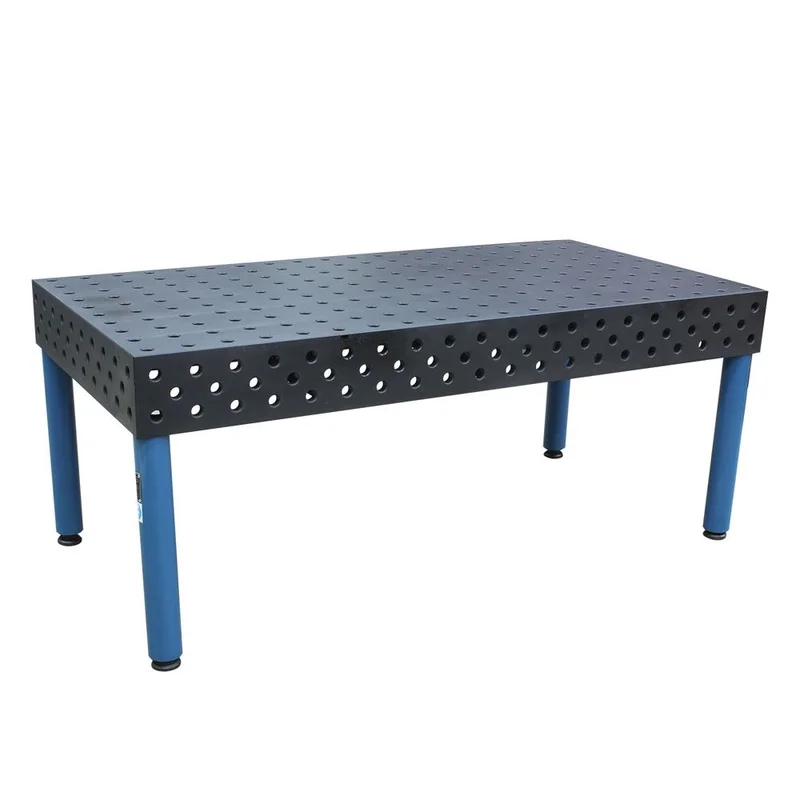

Made from 250 Cast iron the WJT-7839-HD welding jig table from Baileigh Industrial is made to withstand the rigors of any shop. All of Baileigh Industrial’s welding tables are made to exact tolerances and maintain flatness of +/- .0025″ and have a hardness rating of 140 to 160 Brinell. The WJT-7839-HD Welding Jig Table has a table size of 78″ x 39″ and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power.
Baileigh WJT-7839-HD Welding Table Features:
- 78” x 39” table
- Made from 250 Cast Iron with nitride coating
- Brinell Hardness 140~160
- 5 Mounting Surfaces
- Expandable
- 2 ton weight capacity
- Industry Standard 28mm Mounting holes
- 100mm hole spacing
- Etched Position Marks
- Includes table Oiler, Brush and cleaning stone
Baileigh WJT-7839-HD Specifications:
- Item Number: WJT-7839-HD
- Working Table Size: 78″ x 39″
- Table Load Capacity: 2 Tons
- Table Height: 33.5″
- Shipping Weight: 1500lbs
- Table Flatness: +/- .0025″
- Number of Mounting Surfaces: 5
- Mounting Hole Size: 28mm
- Mounting Hole Spacing: 100mm
- Shipping Dimensions (Inches): 89x41x13
- Dimensions L x W x H: 80″ x 45″ x 45″
