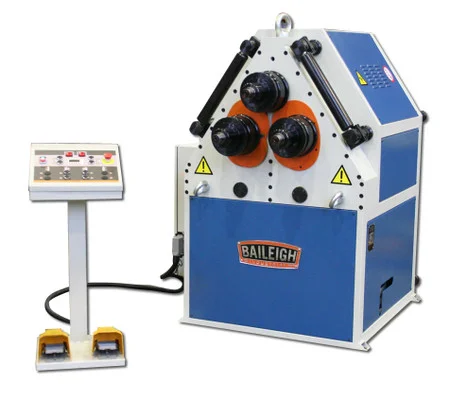

Baileigh 220V 3 Phase 60Htz Model R-H65 Hydraulic Double Pinch Roll Bender (1006840) offers the speed and strength of a double-pinch ring roller without the high cost of a CNC model. This pipe bender runs on 220-volt 3-phase power and has a maximum capacity of 2” schedule 40 pipe.
The 1006840 hydraulic roll bender is equipped with a programmable controller podium and foot pedals for convenient operation, allowing you to run the roller forward or in reverse. Hydraulic encoders communicate the exact position of each roll, and a digital readout ensures uniform, precise results for extended runs of complex parts.
- Specifications and Dimensions
- Length: 60 in.
- Width: 54 in.
- Height: 84 in.
- Net Weight: 3550 lbs
- Number of Rolls: 3
- Driven Rolls: 3
- Top Roll Dia.: 7″
- Bottom Roll Dia.: 7″
- Roll Adjustment: Hydraulic
- Shaft Diameter: 2.559″
- Roll Speed: 11.5 RPM
- Motor: 6.5hp
- Power: 220V / 3-phase
- Key Features and Benefits
- Heavy-duty steel construction ensures durability
- Double-pinch design for pre-bending and post-bending
- Programmable control station for precise bends
- Hydraulic encoders for exact roll positioning
- Digital readout for repeatable results
- Includes segment rolls for various shapes and profiles
- Foot pedal operation for ease of use
- Backed by a 1-year warranty and lifetime technical support
