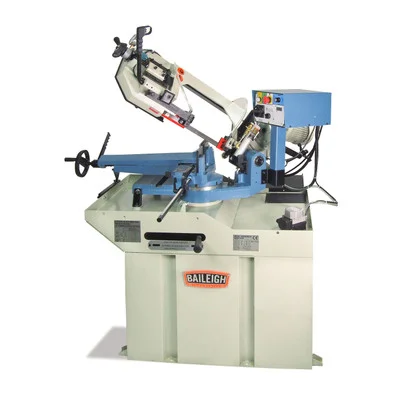

Baileigh 220V Single Phase Dual Mitering Metal Cutting Band Saw Gear Driven (1001432) is designed for versatility and precision in metal cutting tasks. With its robust design and efficient features, it’s perfect for industrial applications.
This 1001432 dual mitering band saw features a dual-mitering head that swivels up to 60° to the right and up to 45° to the left. The solid cast iron saw bow and pivot ensure minimal vibration for straight, clean cuts. With a 60-gallon drum, the 1014516 band saw is ideal for heavy-duty use, making it a reliable choice for various metal cutting needs.
- Specifications and Dimensions
- Voltage: 220V
- Phase: Single-phase
- Capacity: 8.66” round at 90°
- Mitering Head: Swivels up to 60° to the right and up to 45° to the left
- Blade Width: 1 inch
- Cutting Speed: 66 to 280 fpm
- Length: 69 inches
- Width: 44 inches
- Height: 45 inches
- Net Weight: 745 lbs
- Key Features and Benefits
- Dual-mitering head with quick-release head lock
- Solid cast iron saw bow and pivot for minimal vibration
- Hydraulic descent mode for larger production runs
- Adjustable cutting speed for high-quality cuts
- Direct-drive gearbox design
- Patented blade tensioning device
- Powerful flood coolant system
- Fully-welded steel base for stability
- 1-year parts warranty
- Lifetime technical support by phone
