Description

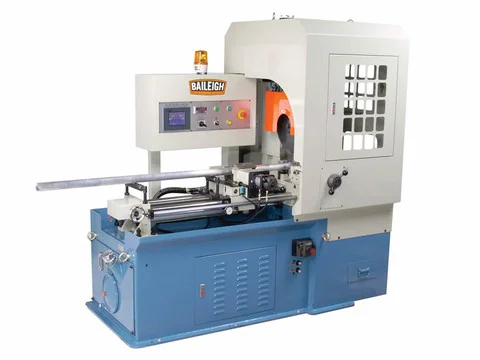

Baileigh 220V 3Phase Heavy Duty Automatic Cold Saw (1002594) is designed for high-volume production and precision cuts. The CS-475AV automatic cutoff saw handles material up to 4.92” in diameter, making it ideal for a variety of applications. With a robust 5 hp motor and steel frame, this cold saw ensures burr-free cuts and longevity.
This 1002594 16″ blade cold saw offers 4 blade speeds (35, 60, 70, and 120 rpm) for cutting different materials efficiently. The programmable touchscreen interface allows you to set the length, number of pieces, descent and retract rate, and coolant rate.
- Specifications and Dimensions
- Length: 90 in.
- Width: 49 in.
- Height: 89 in.
- Net Weight: 3600 lbs
- Motor Phase: 3 Ph
- Max. Blade Diameter: 17″ (16″ Standard)
- Operation: Automatic
- Head Miter: None
- Round Solid at 90 Deg: 3″
- Round Tube at 90 Deg: 4.92″
- Maximum Vice Opening: 5.9″
- Head Style: Column
- Arbor Size: 1.26″
- Motor: 5 Hp
- Voltage: 220 V
- Key Features and Benefits
- Handles material up to 4.92” in diameter
- 4 blade speeds for cutting different materials efficiently
- 5 hp motor ensures powerful performance
- Programmable touchscreen interface for easy operation
- Hydraulic vise clamping and material feed system
- Robust steel frame for longevity and burr-free cuts
- Large operator safety guard for protection
- Emergency light alerts you to any issues
