Description

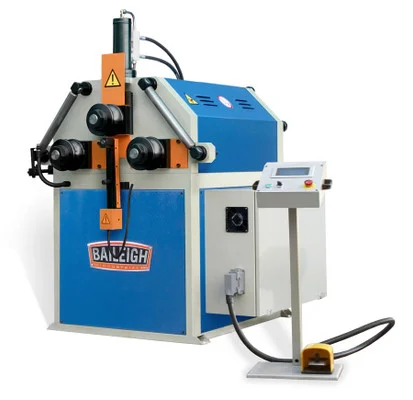

Baileigh 220V 3Phase Computer Controlled Hydraulic Roll Bender with Arc Meter (1006760) offers precision and versatility for industrial metal bending applications. This robust machine features an electro-welded steel plate framework that minimizes flex and ensures accuracy for years of use.
Powered by a 7.4 hp motor, this Baileigh 1006760 roll bender runs on 220-volt 3-phase power and can bend up to 2.5″ round tube and 2” schedule 40 pipe. Its double-pinch design includes three driven rolls and hydraulic lateral guide rolls, making it ideal for complex bending tasks.
- Specifications and Dimensions
- Length: 60 in.
- Width: 44 in.
- Height: 66 in.
- Net Weight: 1200 lbs
- Pipe Capacity: 2″ (sch. 40) / Min. Dia.: 80″
- Round Tube Capacity: 2.5″ (.100″) / Min. Dia.: 60″
- Square Tube Capacity: 2.00″ (.110″)
- Flat Bar Easy Way: 3.5″ (.50″) / Min. Dia. 32″
- Flat Bar Hard Way: 3.15″ (.375″)/ Min. Dia.: 32″
- Shaft Diameter: 1.77″
- Upper and Lower Roll Diameter: 6.693″
- Motor: 7.4 hp
- Power: 220V 3-phase
- Key Features and Benefits
- Double-pinch design for efficient bending
- Arc meter radius gauge to minimize material waste
- Hydraulic lateral guide rolls for angle correction
- Programmable controller with internal memory
- Heavy-duty steel construction for durability
- Interchangeable bottom rolls for versatility
- 1-year parts warranty and lifetime technical support
