Description

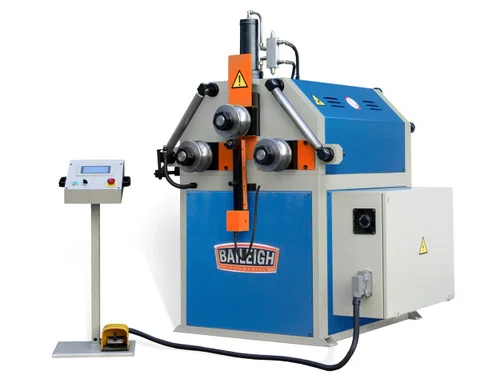

Baileigh 220V 3Phase Computer Controlled Hydraulic Double Pinch Roll Bender (1006764) is engineered to handle large production runs with accuracy and ease. This double-pinch ring roller can bend a wide range of profiles, making it a versatile addition to any shop.
Featuring a capacity of up to 4″ round tube and 2.5” schedule 40 pipe, this 1006764 roll bending machine ensures precise bends with its 3 driven, variable-speed rolls. The robust electro-welded steel framework maintains accuracy and prevents flexing or buckling during operation.
- Specifications and Dimensions
- Length: 50 in.
- Width: 66 in.
- Height: 85 in.
- Net Weight: 2400 lbs
- Driven Rolls: 3
- Roll Adjustment: Hydraulic
- Shaft Diameter: 2.55″
- Shaft Center Distance: Adjustable (lower rolls)
- Upper Roll Dia.: 6.693″
- Lower Roll Dia.: 6.693″
- Motor: 5.3 hp
- Pinch: Single with Interchangeable Bottom Rolls
- Digital Readout: Yes
- Power: 220V / 3-Phase
- Key Features and Benefits
- Double-pinch design reduces material waste
- Programmable controls for precise, repeatable bends
- Electro-welded steel frame for maximum durability
- Hydraulic cylinders for pre- and post-bending
- Touchscreen control with easy-to-use software
- Internal memory stores up to 40 programs
- Includes tooling for various profiles
- 1-year parts warranty and lifetime technical support
