Description

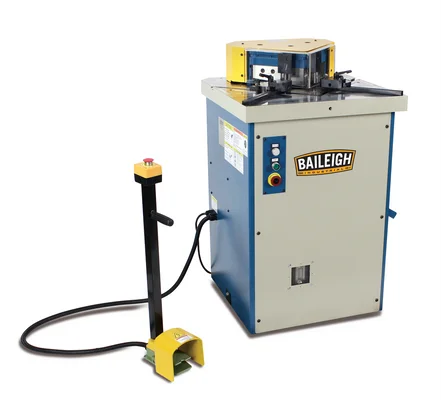

Baileigh 220V 3Phase 4 Gauge Hydraulic Fixed Angle Sheet Metal Corner Notcher (1007213) is designed to make perfect corners with ease. With a fixed 90° blade and a robust 220V 3-phase motor, this notcher is built to handle demanding jobs efficiently.
Featuring a 4 gauge mild steel capacity, the Baileigh 1007213 notcher ensures precision and durability. The oversized 25.5” x 25.5” working table, complete with table guides, allows for accurate notching, while the 8.5” long blades can be resharpened for extended use. Operator-controlled foot pedal enhances usability, delivering up to 15 strokes per minute.
- Specifications and Dimensions
- Length: 48 in.
- Width: 45 in.
- Height: 52 in.
- Net Weight: 1155 lbs
- Table Size: 27″ x 23.5″
- Motor: 4 hp
- Strokes Per Minute: 15
- Blade Gap Adjustment: Manual
- Max. Capacity Mild Steel: 1/4″ (SS capacity with optional blades: 10 ga.)
- Power: 220V / 3-phase
- Max Notch Dimensions: 8-1/2″ x 8-1/2″
- Key Features and Benefits
- Includes 8″ x 10′ extractor arm
- Fixed 90° blade ensures precision
- Operator-controlled foot pedal for ease of use
- Handles 4 gauge mild steel efficiently
- Resharpenable blades for cost savings
- Oversized table with standard guides for easy operation
- Capable of up to 15 strokes per minute
- Durable construction for long-lasting use
