Description

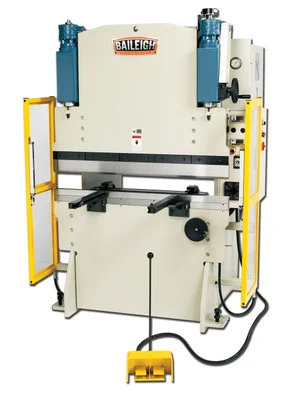

Baileigh 220V 3Phase 33 Ton Hydraulic Press Brake 50″ Width 38″ Distance (1000801) is perfect for industrial applications, offering precise and efficient metal bending. This reliable press brake is designed to handle sheet metal up to 50″ wide with a maximum capacity of .098″ thick, providing up to 33 tons of pressure.
Powered by a robust 220-volt 3-phase motor, this 3-phase hydraulic press brake features a user-friendly system with three operation modes: jog, manual, and automatic. The encoder-controlled hydraulic cylinders and digital readout (DRO) ensure accurate bends every time.
- Specifications and Dimensions
- Length: 75 in.
- Width: 59 in.
- Height: 94 in.
- Net Weight: 2640 lbs
- Bending Capacity: Max Length 50″ / Max Thickness .098″
- Oil Capacity: 20 gal
- Power: 220V / 3-phase
- Item Number: BP-3350NC
- Key Features and Benefits
- Produces up to 33 tons of pressure
- Runs on 220-volt 3-phase power
- Encoder-controlled hydraulic cylinders for precise bends
- Digital readout (DRO) displays position of the downward stroke
- Adjustable top beam pressure and stroke position
- 3 operation modes: jog, manual, and automatic
- Heavy electrowelded frame for stability and accuracy
- Comes with front material rests and a set of hardened single-Vee American tooling
- 1-year parts warranty and lifetime technical support by phone
