Description

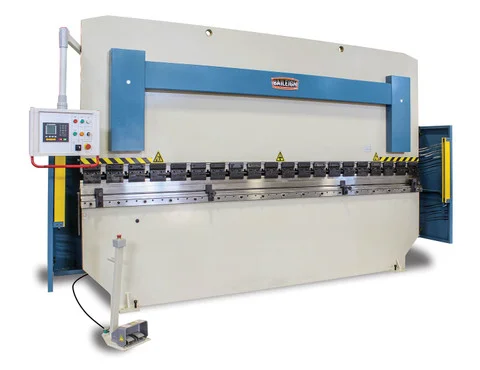

Baileigh 220V 3Phase 179Ton 156″ 2Axis Programmable Hydraulic Press Brake (1000789) is engineered for precision and durability, making it an ideal choice for industrial metalworking tasks. This press brake delivers 179 tons of pressure and has a 13-foot length, with 123” of distance between the housings, allowing you to slide 10-foot sheets with ease.
Featuring a user-friendly controller, this 1000789 179 ton press brake can run in both single-bend and programmable modes. The system stores up to 40 programs with 25 bends per program, streamlining your production process.
- Specifications and Dimensions
- Length: 181 in.
- Width: 71 in.
- Height: 110 in.
- Net Weight: 24000 lbs
- Table Length: 125/157″
- Back Gauge Length: 17144
- Maximum Pressure: 179 tons
- Throat Depth: 12.5″
- Stroke Distance: 7″
- Approach Speed: 2.0″ / sec.
- Back Gauge Motor: 1/2 hp
- Bending Speed: .236″ / sec
- Main Motor: 15 hp
- Power: 220V / 3-phase
- Key Features and Benefits
- Delivers 179 tons of pressure for precise bending
- 13-foot length with 123” distance between housings
- User-friendly controller stores up to 40 programs with 25 bends per program
- Foot pedal operation for hands-free bending
- Fully-welded all-steel construction for structural strength and accuracy
- Includes support arms and standard tooling
- Safety light curtains prevent operation when someone is too close
- Ships fully assembled and ready to use
